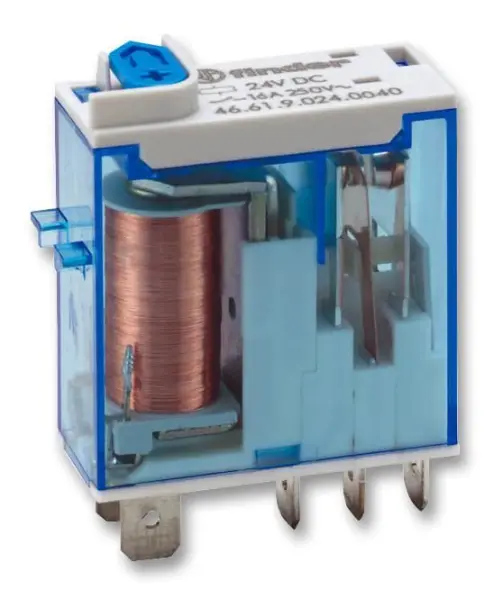

Finder 46 Series Miniature Power Relay, SPDT, 16A - 24V

The Finder 46 Series Miniature Power Relay is a robust, high-performance component designed for demanding industrial control and automation applications. These relays are compact, yet capable of handling significant switching tasks, making them a versatile solution for managing power within electronic and electrical systems.

Featuring a standard SPDT (Single Pole Double Throw) contact configuration, the relay offers flexible switching options. It is designed for easy installation, available with a socket mount or for direct connection via faston quick-connect terminals, providing excellent adaptability for various panel and PCB layouts. The coil is rated for 24V DC operation, ensuring reliable performance in low-voltage control circuits.

A key feature is the high level of electrical isolation—8mm of creepage and clearance distance providing 6KV impulse withstand between the coil and contacts. This ensures safe operation and protects sensitive control electronics from transients on the load side. The contacts are constructed from cadmium-free silver nickel, offering a reliable, durable switching surface with good conductivity and longevity.

Applications

This relay is engineered for a wide array of uses, including industrial machinery, power management systems, automation process control, and consumer electronics. Its 16A switching capacity at 250V AC makes it suitable for controlling motors, solenoids, heaters, and other inductive or resistive loads. The compact miniature footprint allows for high-density installations where space is at a premium, without compromising on performance or safety.

Specifications

• Contact Configuration: SPDT (Single Pole Double Throw)
• Coil Voltage: 24V DC
• Contact Rating: 16A at 250V AC / 30V DC
• Contact Material: Silver Nickel, Cadmium-Free
• Isolation: 6KV (1.2/50μs impulse) between coil and contacts
• Mounting: Socket

Variant Details

• Size: 24V
