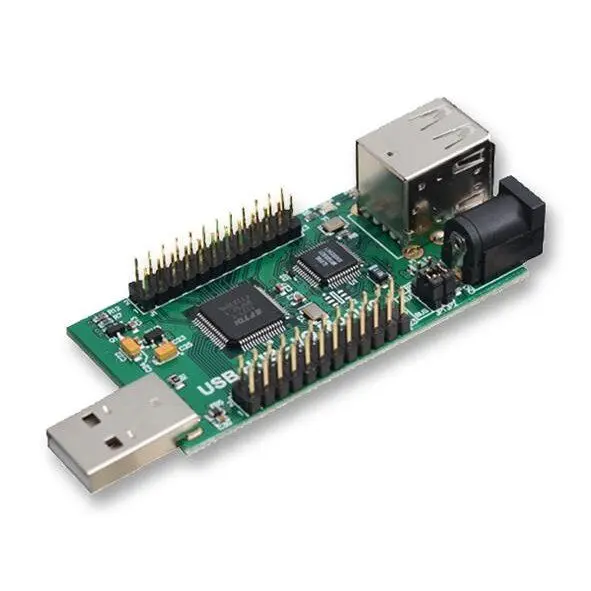

FTDI RPi-HUB-MODULE USB Hub & Multi-Interface Converter
- SKU
- C3-SC12824
- EAN
- 3562074142095
- Brand
- FTDI
FTDI RPi-HUB-MODULE USB hub and multi-interface converter for Raspberry Pi, with three USB 2.0 ports and UART, SPI, I2C, JTAG and GPIO support.
This item is currently out of stock...
This item is currently out of stock, but you can opt in to be notified when it's back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Tracked deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- Returns acceptedUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Expanding USB connectivity on a Raspberry Pi
- Connecting keyboards, mice, storage, and other USB devices
- Hardware debugging and development
- Serial communication with UART devices
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Chipset: FT2232H
- Hub Controller: GL850G USB 2.0 Hi-Speed
- Downstream Ports: Up to three USB 2.0 Hi-Speed ports
- Connectors: Dual-port USB type A, 0.1” pitch header, external power input connector
- EEPROM: 93LC56
- Special Feature: All I/O pins are 5V tolerant
- Supported Protocols: UART, SPI, I2C, JTAG, bit-bang GPIO
- UART Transfer Rate: 300 baud up to 12 Mbaud at 3.3V TTL levels
- Synchronous Serial Data Rate: Up to 30 Mbps for JTAG, SPI, and I2C
- Width: 3.3
- Depth: 1.5
- Height: 4.3
- Weight: 40 gm
