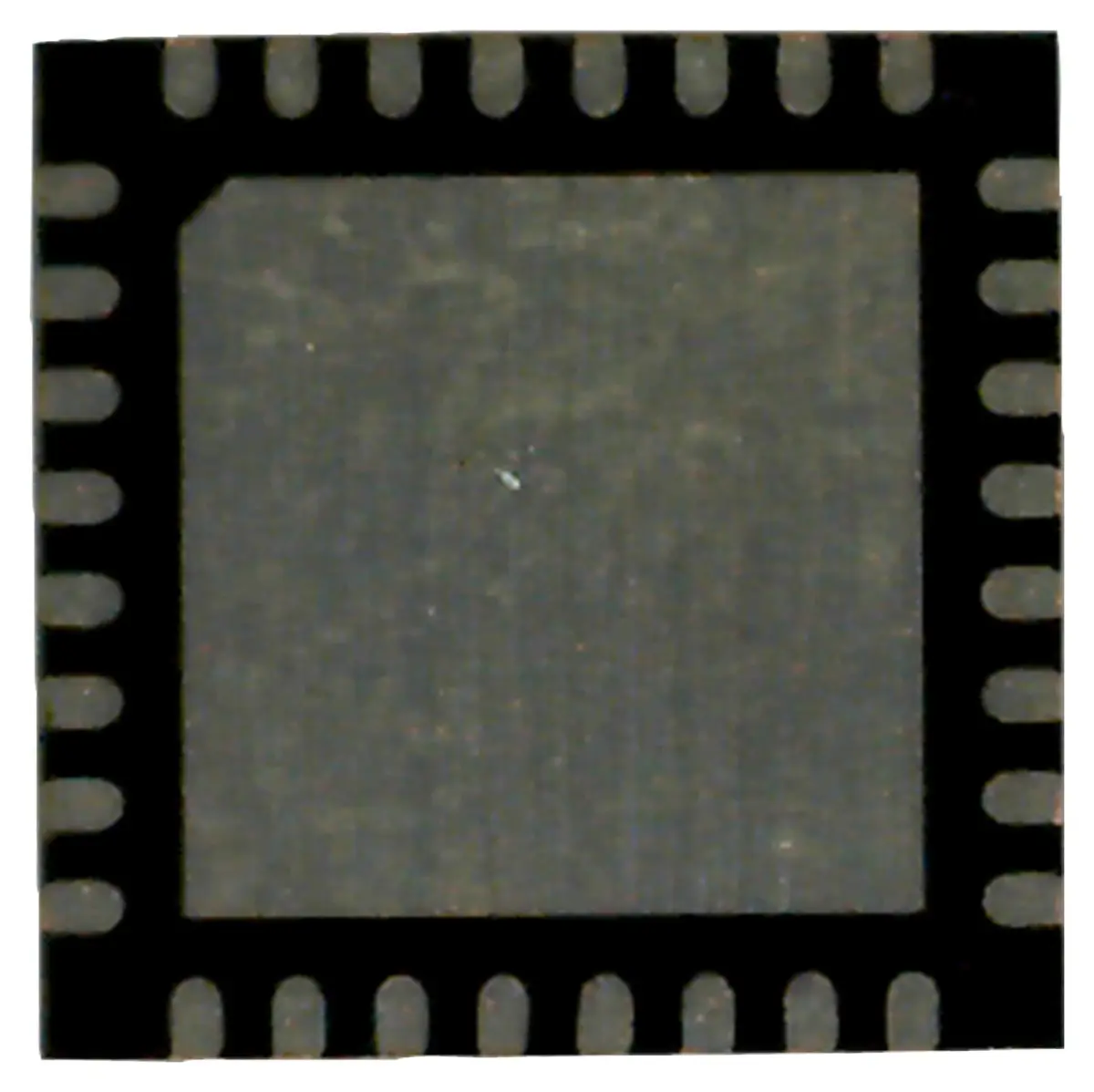

FTDI USB to UART Bridge QFN32

The FTDI USB to UART Bridge is a versatile interface solution designed to provide seamless connectivity between USB and UART protocols. Housed in a compact QFN32 package, this bridge is ideal for embedded systems and space-constrained applications.

Equipped with a 128-byte receive buffer and a 256-byte transmit buffer, it ensures efficient data handling, reducing the risk of data loss during high-speed transfers. The device supports both synchronous and asynchronous bit-bang interface options with RD# and WR# strobes, offering flexible control for a wide range of peripheral integrations.

The bridge delivers true 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input, making it compatible with various logic levels. With a supply voltage range of 1.8V to 5.25V, it accommodates multiple power environments.

Engineered for reliability, this component operates within a temperature range of -40°C to 85°C, suitable for industrial and outdoor applications. The MSL 3 (168 hours) moisture sensitivity level ensures robust performance during manufacturing.

Key Features

• 128-byte receive buffer and 256-byte transmit buffer
• Synchronous and asynchronous bit-bang interface with RD# and WR# strobes
• True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input
• Wide supply voltage range: 1.8V to 5.25V
• Compact QFN32 package

Specifications

• Package: QFN32
• Supply Voltage Min: 1.8V
• Supply Voltage Max: 5.25V
• Operating Temperature: -40°C to 85°C
• Moisture Sensitivity Level: MSL 3 - 168 hours

This USB to UART bridge is an excellent choice for developers and engineers seeking a dependable, high-performance interface solution.
