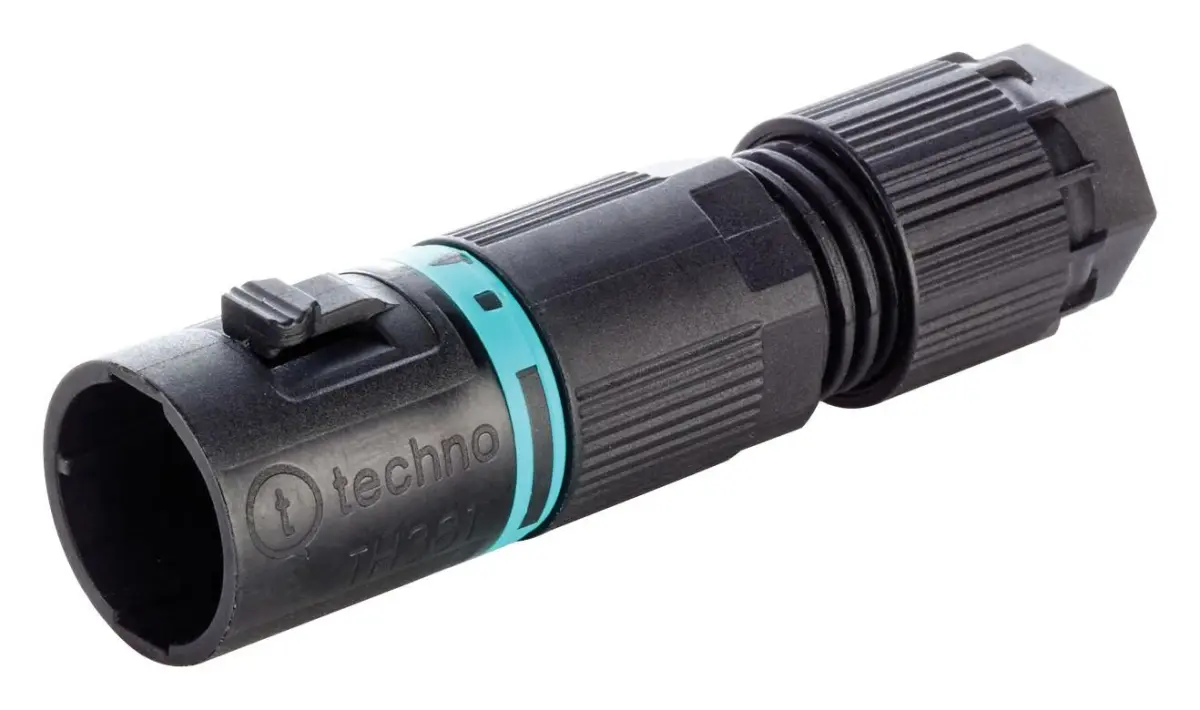

HYLEC 2 Pole Micro-Connector Plug, IP68/IP69K, 7-8mm Cable

The HYLEC 2 Pole Micro-Connector Plug provides a robust and completely sealed connection solution for the most demanding electrical applications. Engineered for durability, this compact connector boasts an impressive IP68/IP69K ingress protection rating, ensuring it is fully sealed against fine dust and capable of withstanding high-pressure, high-temperature water jets. This makes it perfectly suited for harsh and washdown environments where reliability is non-negotiable.

Designed to accommodate cables with a diameter of 7mm to 8mm, this micro-connector offers a secure and waterproof seal around the cable entry point. Its construction prioritises long-term performance, resisting corrosion and environmental degradation to maintain a stable electrical connection in challenging conditions. The two-pole design is ideal for standard power and signal connections in a wide array of industrial and commercial settings.

Primary Applications

This connector is a critical component for systems that must operate reliably outdoors or in wet, dirty conditions. Its primary uses include connecting and protecting wiring for outdoor LED lighting arrays, industrial sensors and instrumentation, and equipment located in food processing or pharmaceutical washdown areas. It is also excellent for agricultural machinery, marine applications, and any scenario where connections are exposed to the elements or frequent cleaning.

Key Specifications

• Ingress Protection: Rated IP68 (submersible) and IP69K (high-pressure, high-temperature washdown)
• Sealing: Fully sealed against dust and water ingress
• Cable Compatibility: Suitable for cables with an outer diameter of 7mm to 8mm
• Pole Configuration: 2-pole design for power or signal connections
• Construction: Durable materials designed for harsh environments

With its exceptional sealing and compact,
