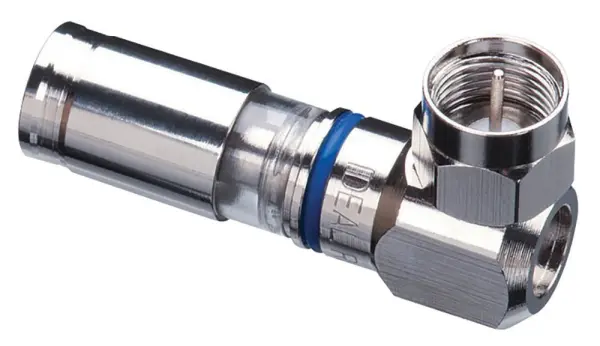

IDEAL F Type Right Angle Compression Plugs RG6 75 Ohm, Pack of 5

The IDEAL 92-691 is a pack of five professional-grade right-angle F-Type compression connectors, engineered to simplify installations by accommodating a wide range of coaxial cables. This versatile, single-connector solution is designed to work with Regular (dual), Tri, and Quad shield cables, including plenum-rated versions, making it an indispensable tool for both residential and commercial AV setups.

Featuring a robust, all-brass exterior with a nickel plating, these connectors are built for durability and reliable performance in both indoor and outdoor environments. A key innovation is the patented compression sleeve design, which ensures a secure and consistent termination across different cable types without the need for multiple connector variants.

Key Features & Benefits

• Universal Compatibility: The patented design allows one connector to terminate Regular, Tri, and Quad shield coaxial cables, reducing inventory and complexity.
• Superior Weatherproofing: A dual O-ring and adapter sleeve system effectively prevents moisture migration, ensuring a robust and weatherproof connection that stands up to the elements.
• High-Performance Signal Integrity: Rated for 3GHz and 75Ω, these plugs are optimised for all video-based applications, delivering excellent signal quality for cable television, satellite TV, and broadband services.
• Exceptional Cable Retention: Provides greater than 80lbs of cable retention force, guaranteeing a secure connection that resists pull-out and maintains signal integrity over time.

Specifications & Fit

• Connector Type: F-Type Coaxial Right-Angle Plug
• Termination: Compression
• Compatible Cable: RG6
• Jacket Diameter Range: 5.74mm - 7.87mm
• Dielectric Diameter Range: 4.27mm - 4.65mm
• Cable Preparation: Requires industry-standard 1/4 inch by 1/4 inch preparation <
