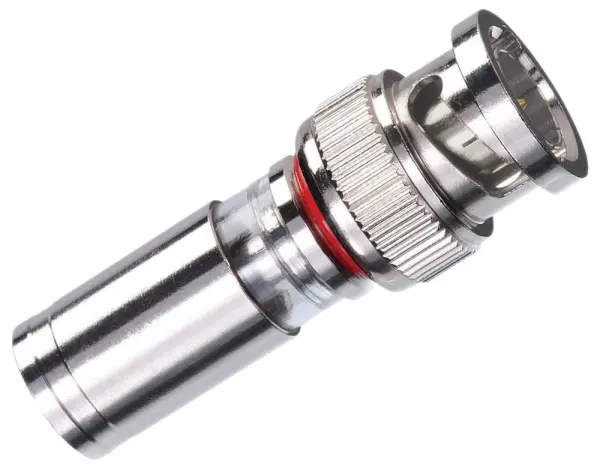

IDEAL-TEK RG59 BNC Compression Coaxial Connector Plug, Pack of 15

The IDEAL-TEK 89-047 is a professional-grade pack of 15 RG59 BNC compression coaxial connectors, designed for reliable and high-performance video signal transmission. These connectors feature a robust nickel-plated brass external construction for durability and corrosion resistance, paired with a gold-plated fixed centre pin contact to ensure optimal signal integrity and a stable, low-resistance connection.

A standout feature is the innovative InSITE™ visual inspection window. This allows installers to verify proper cable insertion and preparation before the final compression step, significantly reducing installation errors and ensuring a perfect termination every time. Rated for frequencies up to 3GHz and a consistent 75Ω impedance, these connectors are engineered for use in all standard video-based applications.

Key Applications

Ideal for professional installers and DIY enthusiasts, these BNC plugs are perfectly suited for security and surveillance systems, CCTV camera installations, video distribution networks, and broadcast equipment. They provide a secure and dependable connection that maintains signal quality over time, which is critical for clear video feeds and system reliability.

Compatibility & Specifications

• Designed specifically for use with RG59 coaxial cable.
• Fits cables with a jacket diameter between 5.8mm and 6.35mm.
• Accommodates cables with a dielectric diameter of 3.6mm to 3.75mm.
• Compatible with solid centre conductors ranging from 23 to 18 AWG.
• Requires an industry-standard 1/4
