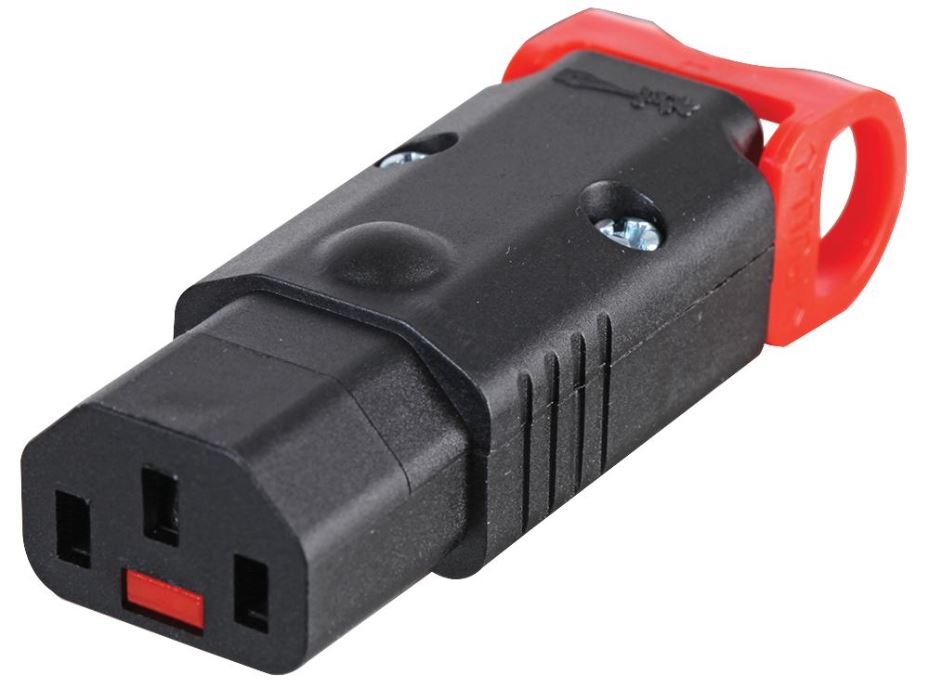

IEC Lock+ Locking Rewireable IEC C13 Connector

The IEC Lock+ Locking Rewireable IEC C13 Connector is the world's first locking and rewireable C13 IEC connector, providing superior security by preventing accidental disconnection, whether from pulling or vibrations. This innovative design ensures your connections remain secure in a wide range of applications.

Key Features

• Rewireable Design: Allows total flexibility when assembling custom cables to meet specific needs.

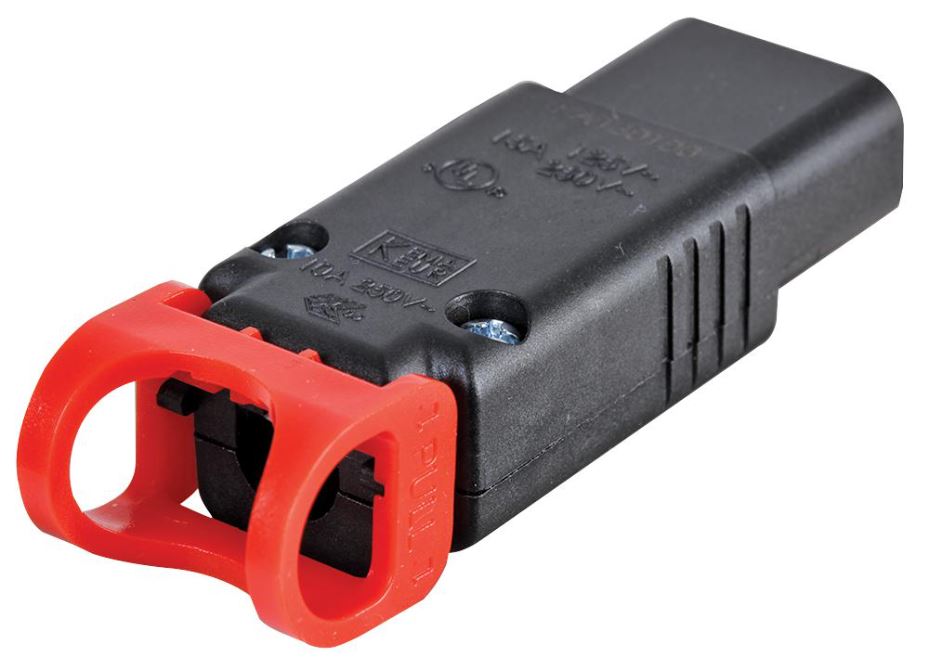

• Secure Locking Mechanism: Simply pull the red lock device to plug in or remove, ensuring a firm and reliable connection.
• Slim and Compact: Minimal footprint makes it ideal for tight spaces.
• Easy Identification: Clear design aids in quick recognition.
• LSZH Material: Low Smoke Zero Halogen construction ensures safety in case of fire.

Applications

This connector is perfect for securing power connections in environments where accidental disconnection could be dangerous, such as in data centres, industrial equipment, or medical devices.

Specifications

• Cable Sizes: 3Cx0.75mm, 3Cx1.00mm, 3Cx1.25mm, 3Cx1.50mm (Max 3Cx14-18 AWG)
• Certifications: EN 60320-1:2001+A1:2007, UL 60320-1, CSA C22.2 No. 60320-1
• Connector Type: IEC C13 Socket
• Current Rating: 10A
• Voltage Rating: 250V AC
• Termination Type: Screw
• Mounting Type: Cable Mount

Ensure safe and reliable power delivery with the IEC Lock+ Locking Rewireable IEC C13 Connector, a superior solution for secure electrical connections.
