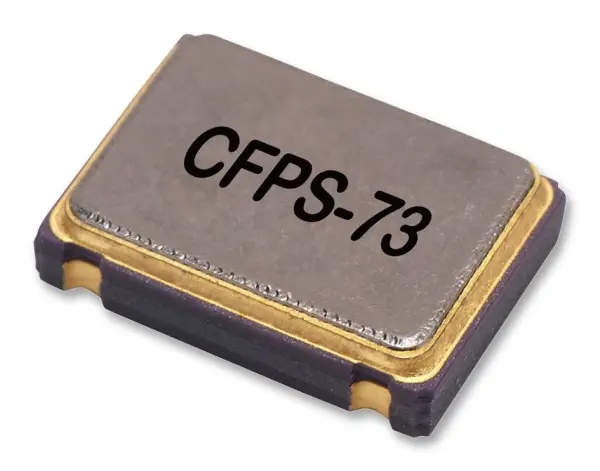

IQD CFPS-73 Series SMD Crystal Oscillator, 100MHz, 7x5mm, 3.3V

The IQD CFPS-73 Series SMD Crystal Oscillator provides a highly stable and precise 100MHz clock signal, engineered for critical timing applications. This ceramic-packaged device is hermetically sealed with a seam-welded metal lid, ensuring excellent long-term reliability and superior protection from environmental contaminants, which is essential for maintaining frequency integrity.

Designed for modern, space-constrained electronics, its compact 7mm x 5mm surface-mount footprint allows for efficient PCB layout. It operates from a standard 3.3V ±10% supply voltage, drawing a typical 40mA current, with a maximum standby current of just 10µA, making it suitable for power-sensitive designs. The oscillator features HCMOS output compatibility with a maximum drive capability of 15pF and fast signal transitions, with a maximum rise and fall time of 4ns.

This component delivers exceptional frequency stability of ±50 ppm over its operating temperature range of 0°C to 70°C. It is built to withstand demanding conditions, with an ageing specification of ±3 ppm per year maximum and robust construction that meets MIL-STD shock and vibration standards (MIL-STD-202, Method 213, Condition E and MIL-STD-883, Method 2007, Condition A). The result is a dependable oscillator suitable for a wide range of professional and industrial electronics where timing precision is non-negotiable.
