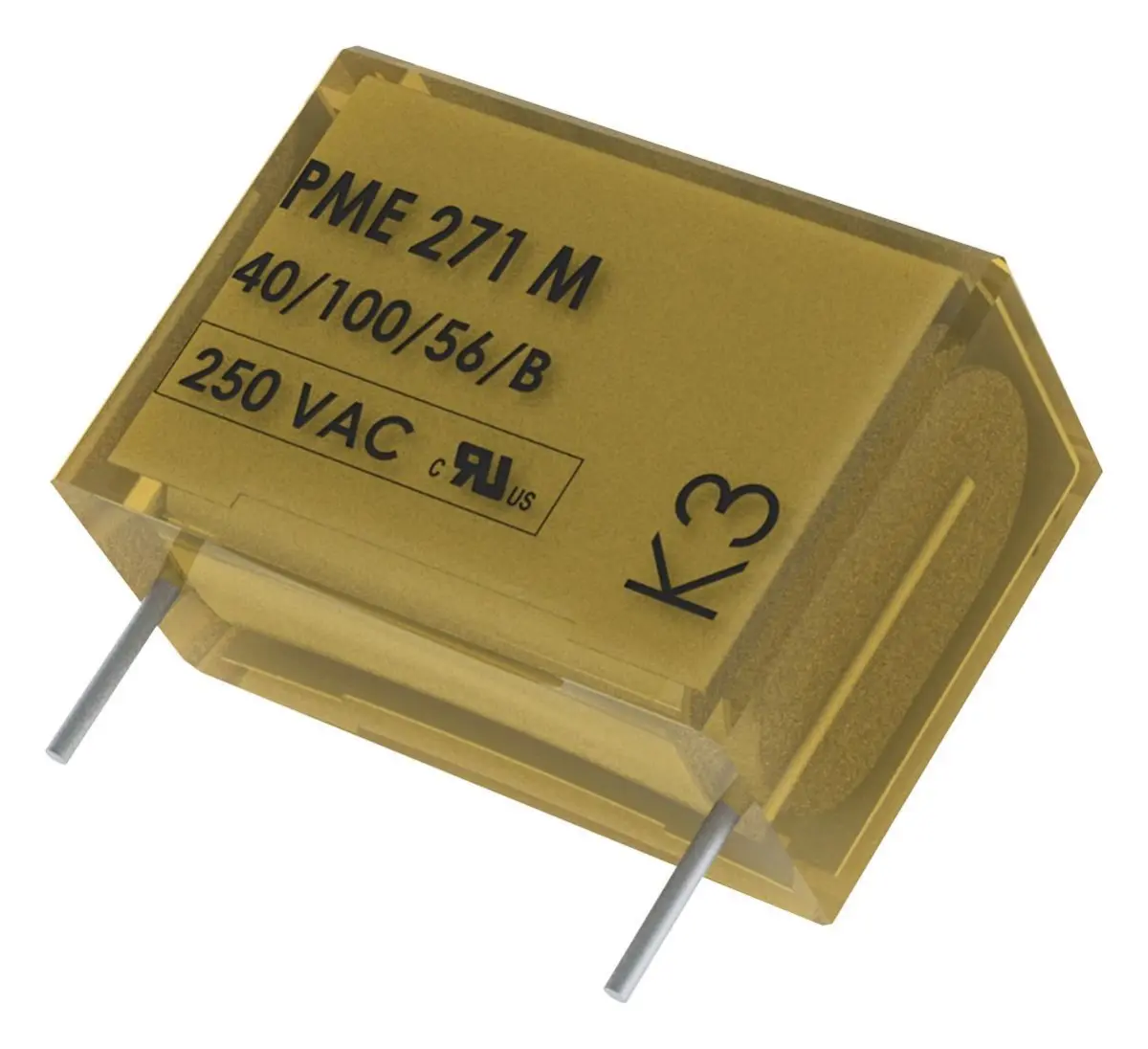

KEMET Safety Capacitor, Metallised Paper, 0.047µF, X2, Through Hole

The KEMET Safety Capacitor is a high-quality radial box component designed for reliable performance in electronic circuits. Featuring a metallised paper dielectric, this capacitor is engineered to provide robust suppression and stability. With a capacitance of 0.047µF and a tolerance of ± 20%, it meets the stringent requirements of X2 suppression class applications, operating safely at a voltage rating of 275VAC.

Built for through-hole mounting, the capacitor features a 2-pin radial box package with an 18.5mm lead spacing, ensuring straightforward installation on printed circuit boards. It boasts an impressive dv/dt rating of 1.2kV/µs, making it highly responsive to voltage transients.

This component is designed to withstand harsh environments, featuring a Grade II humidity rating. It operates reliably across a broad temperature range from -40°C to 110°C, ensuring consistent functionality in demanding conditions. Measuring 43mm in height, 33mm in width, and 15mm in depth, and weighing 22.68 grams, this PME271M/P276 series capacitor is a dependable choice for your circuit protection needs.
