LABFACILITY PT100 Thin Film Resistance Temperature Detector, Class A, -50°C to

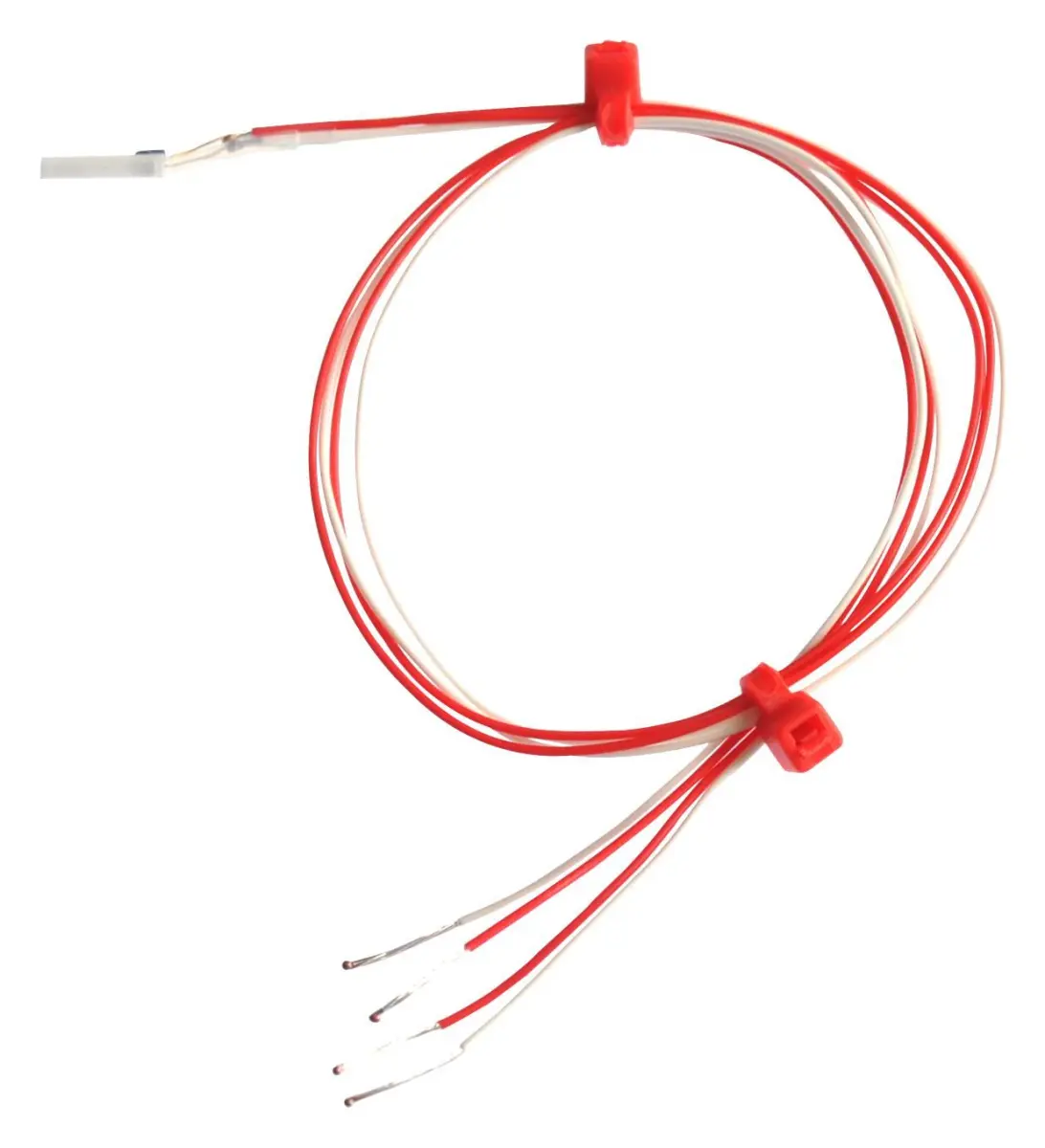

The LABFACILITY XF-936-FAR is a high-precision PT100 platinum thin film resistance temperature detector (RTD), designed for accurate and reliable temperature measurement across a wide range. It features a robust ceramic probe and thin film construction, ensuring a fast response time for dynamic temperature monitoring. With a 4-wire configuration, it provides excellent measurement accuracy by compensating for lead wire resistance, making it ideal for demanding industrial and laboratory applications.

This sensor is suitable for air, surface, and immersion applications, offering great versatility. Its vibration-resistant design ensures stable performance in challenging environments. The extended lead wires are PTFE insulated with stranded conductors, enhancing durability and flexibility for installation in confined spaces or where movement is expected.

Key Specifications & Features

• High Accuracy: Conforms to Class A tolerance as per IEC 60751:2008 / BS EN 60751:2008 standards, guaranteeing precise measurements.
• Wide Temperature Range: Capable of measuring from -50°C to +250°C, covering a broad spectrum of process and environmental conditions.
• Durable Construction: The platinum sensing element and ceramic probe material ensure long-term stability and resistance to corrosion.
• Fast Response: The thin film element technology allows for quick thermal reaction, capturing temperature changes efficiently.
• Reliable Connection: The 4-wire configuration with 300mm long, 26 AWG wire leads provides a secure and accurate connection for instrumentation.

This PT100 RTD is a dependable choice for engineers and technicians requiring a certified, high-performance temperature sensor for control systems, monitoring equipment, and quality assurance processes.
