Lascar EasyLog Voltage Data Logger Development Board 0-2.4V DC

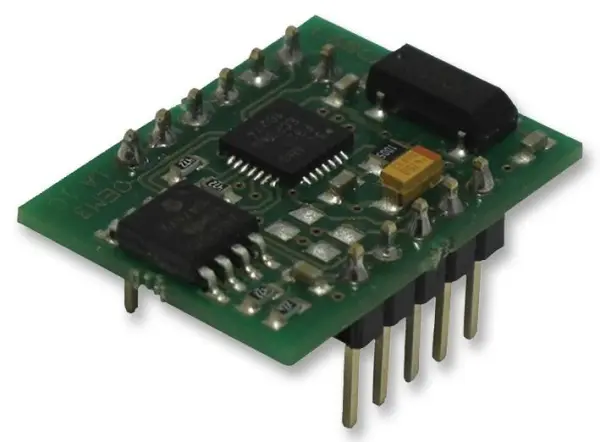

Lascar EasyLog Voltage Data Logger Development Board is a PCB-mounted, component-style data logger that measures and stores up to 64,000 voltage readings across a 0 to 2.4V d.c. range. Designed for engineers and developers, it integrates data logging into new or existing products without the need to develop a dedicated hardware and software platform from scratch.

Overview

The board features header sockets on a 2.54mm pitch for straightforward PCB integration. Logging rates are adjustable between 1 second and 12 hours, allowing the device to suit different monitoring requirements. A data rollover mode extends logging by overwriting the oldest data once the memory is full, supporting continuous data collection. A USB interface enables set-up and data download, although the USB connector is not included. User-programmable alarm thresholds allow custom alerts to be set based on voltage conditions.

Key Features

• PCB mounted with 2.54mm pitch header sockets
• 0 to 2.4V d.c. measurement range
• Logging rates from 1 second to 12 hours
• Stores 64,000 readings
• Data rollover mode for extended logging
• USB interface for set-up and data download (USB connector not included)
• User-programmable alarm thresholds
• Nominal 3V supply voltage
• Immediate and delayed logging modes
• Free Windows control software

Specifications

• Width: 3.3
• Depth: 1.5
• Height: 4.3
• Weight: 30 g

Applications

Suitable for engineers and developers seeking to add voltage data logging to new or existing products. Complete integration is possible with the purchase of the USB interface protocol, and free Windows software is provided for control and configuration.

Choose the Lascar EasyLog Voltage Data Logger Development Board for a practical, component-level route to voltage data logging within your own designs.
