LBPM Switch Disconnector 3 Pole 32A IP65 690VAC

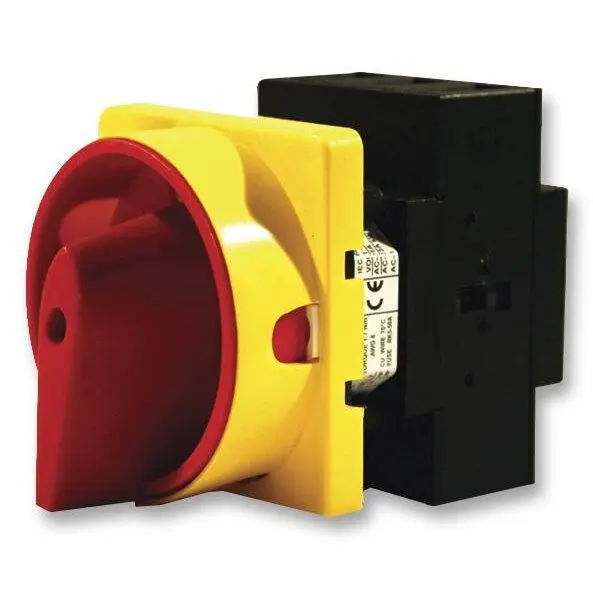

The Multicomp Pro LBPM Series Switch Disconnector is a panel-mounted, enclosed unit engineered for reliable electrical isolation in three-phase systems. Featuring a robust 3-pole design with a maximum AC contact voltage of 690 V and a current rating of 32 A, this switch disconnector is suited for demanding industrial and commercial applications.

The unit is IP65 rated, offering protection against dust ingress and low-pressure water jets, making it suitable for washdown environments or outdoor use. Operation is facilitated by a 280mm long hexagonal metal shaft (8mm across flats), which provides a secure and tactile actuation. The handle is padlockable, allowing for safe lockout/tagout procedures during maintenance, enhancing worker safety.

This switch disconnector meets the AC-23A utilization category, ensuring it can handle frequent switching of motor loads. With screw terminals, installation is straightforward and secure. The compact dimensions (WxHxD) of 50x87x85mm allow for space-efficient mounting, while the sturdy construction ensures long service life. It is certified to CSA, EN, IEC, and UL standards, guaranteeing compliance with international safety and performance requirements.

Specifications

_ No. of Poles: 3 Pole _ Contact Voltage AC Max: 690 V _ Contact Current AC Max: 32 A _ IP / NEMA Rating: IP65 _ Terminal Style: Screw _ Shaft Length: 280mm hexagonal metal (8mm AF) _ Dimensions (WxHxD): 50x87x85mm _ Approvals / Standards: CSA, EN, IEC, UL

This switch disconnector is ideal for use as a main isolating switch in distribution boards, machine tools, and control panels, providing a dependable means of disconnection and switching.
