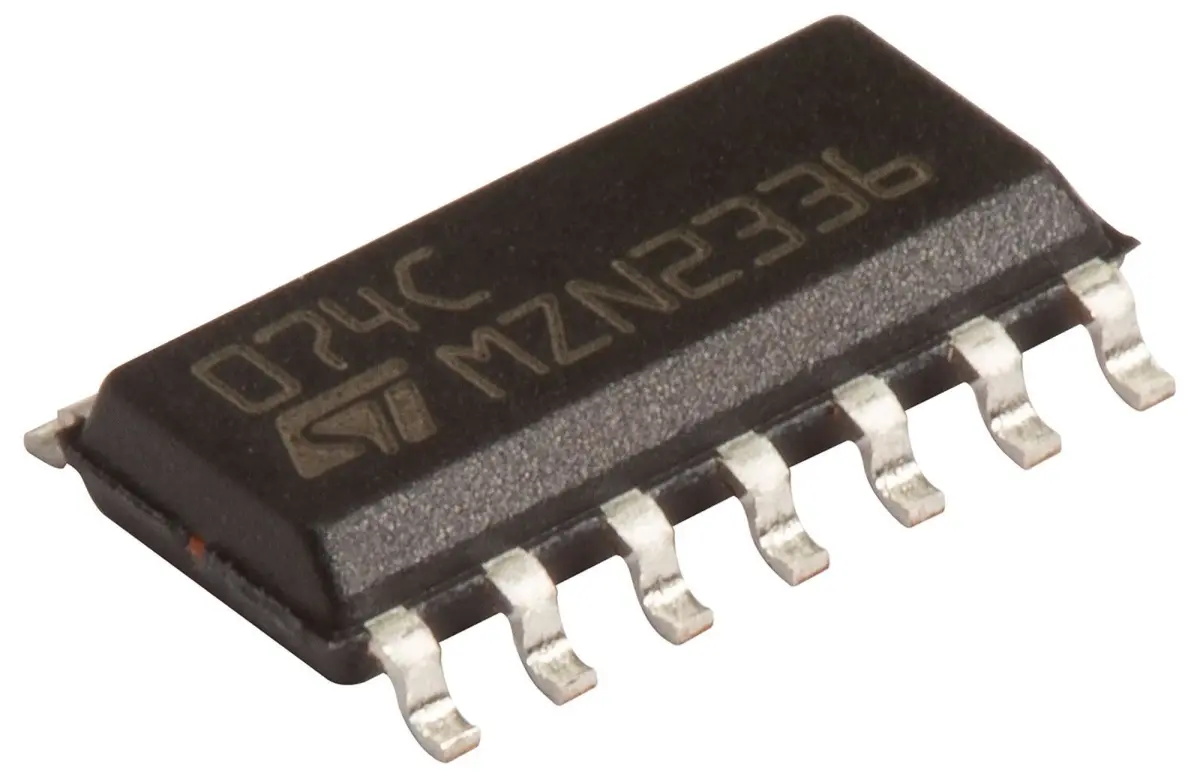

Low Noise JFET Quad Op Amp, SOIC, SMD, 14 Pins, 6V to 36V

The TL074CD is a low-noise JFET Quad Operational Amplifier designed for high-performance audio and precision applications. Each of these JFET input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit, delivering excellent stability and low distortion.

This amplifier features high slew rates, low input bias and offset currents, and a low offset voltage temperature coefficient, making it ideal for demanding signal processing tasks. It operates over a wide common-mode voltage range, up to VCC+, and supports a differential voltage range that enhances flexibility in various circuit configurations.

Key Features

• Low noise: 15nV/√Hz (typical)
• High slew rate: 16V/µs (typical)
• Low harmonic distortion: 0.01% (typical)
• Output short-circuit protection
• Internal frequency compensation
• Latch-up free operation
• Wide common-mode and differential voltage range

With four channels, a gain bandwidth product of 3MHz, and a supply voltage range from 6V to 36V, this operational amplifier is suitable for a wide range of electronic designs. It comes in a surface-mount SOIC package with 14 pins, ensuring reliable performance in compact applications. The device is MSL 1 rated, offering unlimited floor life, and is free of SVHC substances as of June 2025.

Specifications

• Amplifier Type: Operational
• No. of Channels: 4
• No. of Amplifiers: 4
• Bandwidth: 3MHz
• Slew Rate: 16V/µs
• Supply Voltage Range: 6V to 36V
• Input Offset Voltage: 3mV
• Input Bias Current: 30pA
• IC Case / Package: SOIC
• No. of Pins: 14
• IC Mounting: Surface Mount
• Operating Temperature Range: 0°C to 70°C
