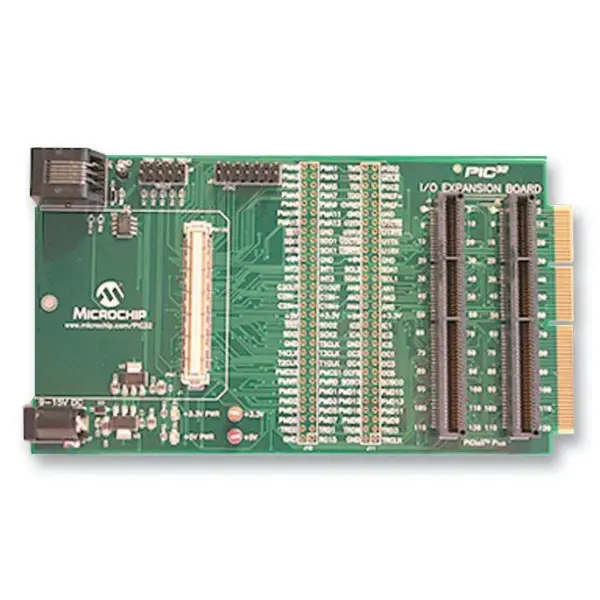

Microchip PIC32 I/O Expansion Board

The Microchip PIC32 I/O Expansion Board is an essential tool for developers working with Microchip's PIC32 microcontroller series. This board provides full access to MCU signals from a connected starter kit, enabling advanced prototyping, debugging, and development. It is designed to extend the functionality of your existing Microchip starter kit, offering a versatile platform for embedded design projects.

A key feature is the provision for connecting JTAG debugging tools or using the 2-wire ICSP (In-Circuit Serial Programming) interface for development. All MCU signals are routed to accessible pin holes, allowing users to install vertical headers for attaching prototype circuits or logic probes for signal monitoring. This makes it an invaluable resource for testing and verifying hardware designs in real-time.

Key Applications & Compatibility

This expansion board is specifically intended for use with Microchip starter kits; it does not contain its own microcontroller. It is compatible with the PIC32 Starter Kit (DM320001), PIC32 USB Starter Kit II (DM320003-2), PIC32 Ethernet Starter Kit (DM320004), dsPIC33E USB Starter Kit (DM330012), and the PIC24E USB Starter Kit (DM240012). For added flexibility, users can connect an optional 9V power supply directly to the board. Its compact dimensions ensure it can be easily integrated into a development workspace or test setup.

Primary Features

• Provides full access to MCU signals from a connected starter kit
• Supports JTAG debugging and 2-wire ICSP development interface
• Compatible with PICtail Plus daughter cards for expanded functionality
• Features pin holes for installing headers to connect prototype circuits or logic probes
• Allows connection of an optional 9V external power supply
• Compact and lightweight design for easy integration into development environments

Ideal for engineers, students, and hob,
