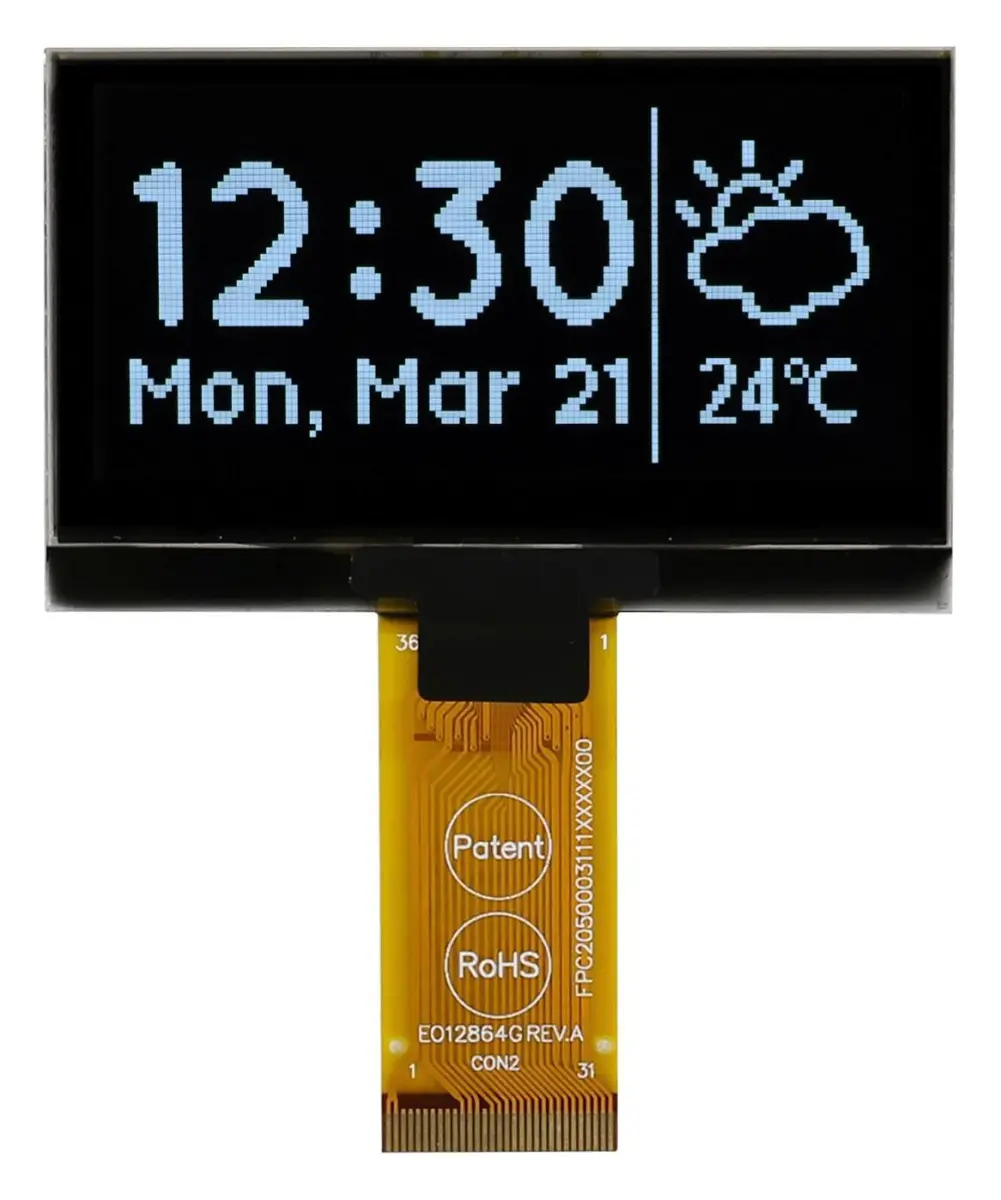

MIDAS DISPLAYS MCOT128064H OLED Graphic Display Module 128x64, White on Black,

The MIDAS DISPLAYS MCOT128064H OLED Graphic Display Module is a high-resolution monochrome panel offering crisp white graphics on a deep black background. Featuring a 128 x 64 pixel array, it delivers sharp characters and detailed graphics suitable for a wide range of embedded applications.

Constructed using a durable Chip on Tab (COT) method and controlled by an SSD1309Z driver, this module provides excellent reliability. Its superb all-round viewing angles ensure clear visibility from virtually any position, making it ideal for devices where the display orientation may vary.

Designed for flexibility, the module supports multiple interface types including Parallel, SPI, and I2C (Serial), allowing for easy integration into both new and existing electronic designs. It operates on a 3V logic voltage, making it suitable for low-power applications.

Built to withstand challenging environments, it features a wide operating temperature range from -40°C to +80°C. Connection is made via a robust 24-way flat flexi cable with a fine 0.30mm pitch, located at the centre bottom of the panel for convenient routing.

Key Specifications

• Resolution: 128 x 64 pixels
• Display Appearance: White on Black
• Viewing Area: 57.01mm x 28.91mm
• Dot Size: 0.40mm x 0.40mm
• Interface: Parallel, SPI, I2C (Serial)
• Logic Voltage: 3V
• Operating Temperature: -40°C to +80°C
• Controller: SSD1309Z
• Construction: Chip on Tab (COT)
• Connector: 24-way flat flexi, 0.30mm pitch
