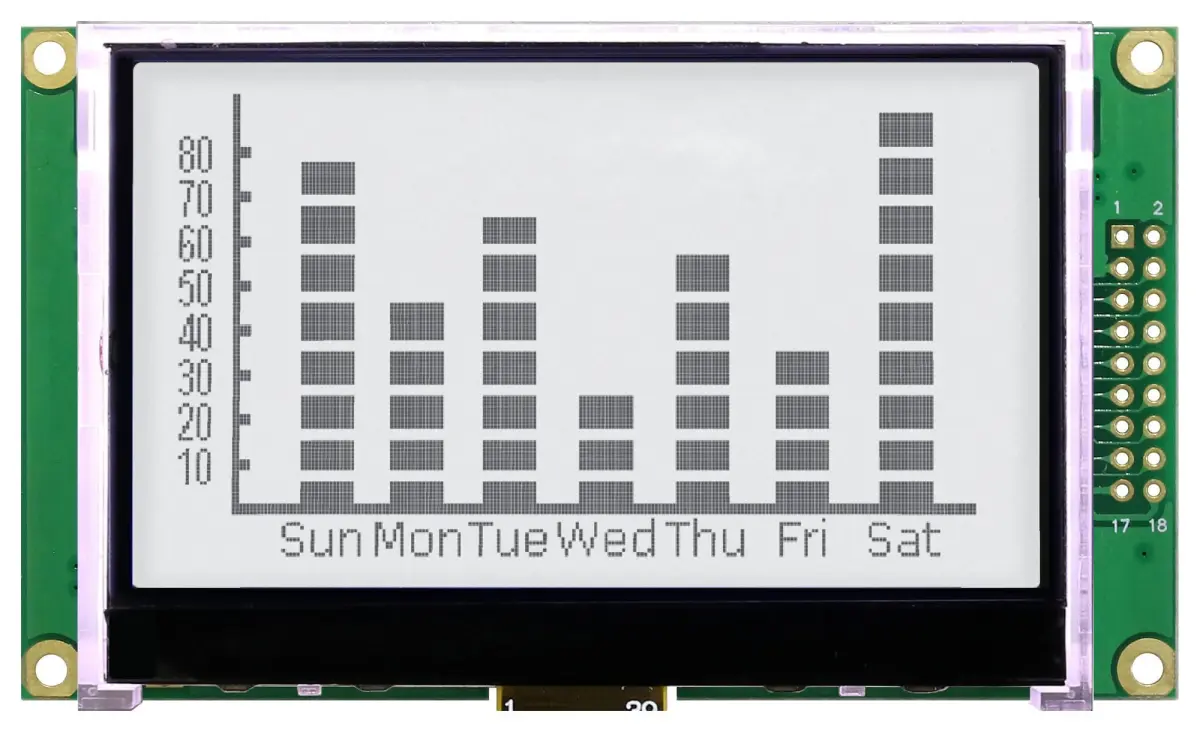

MIDAS DISPLAYS MD256128A Graphic LCD Module, 256x128, White LED Backlight

The MIDAS DISPLAYS MD256128A Graphic LCD Module is a high-contrast, monochrome display featuring a 256x128 pixel resolution. It presents information as sharp black characters on a bright white background, offering excellent readability in various lighting conditions. This transflective FSTN (Film Super Twisted Nematic) screen type, combined with a white LED backlight, ensures clear viewing both with ambient light and in low-light environments.

Designed for flexibility, the module supports a multi-interface configuration, including I2C, SPI, and parallel communication protocols, making it highly adaptable for integration into a wide range of electronic projects and industrial control systems. It is driven by an on-board ST75256 controller and operates on a 3.3V logic voltage.

Constructed using a reliable Chip on Glass (COG) on PCB method, the module is robust and durable. The 18-pin DIL right-angle connector facilitates straightforward mounting and connection. With a compact overall footprint of 93mm x 54mm and a generous viewing area of 70.70mm x 38.80mm, it provides a large display in a space-efficient package. Its operational reliability is assured across a wide temperature range from -20°C to +70°C.

• High-Resolution Display: 256 x 128 pixels for detailed graphics and text.
• Superior Readability: FSTN transflective technology with black-on-white appearance.
• Integrated Backlight: Energy-efficient white LED backlight for low-light use.
• Versatile Connectivity: Supports I2C, SPI, and parallel interfaces for design flexibility.
• Wide Operating Range: Functions reliably from -20°C to +70°C.
• Robust Construction: Chip on Glass (COG) on PCB design for enhanced durability.
