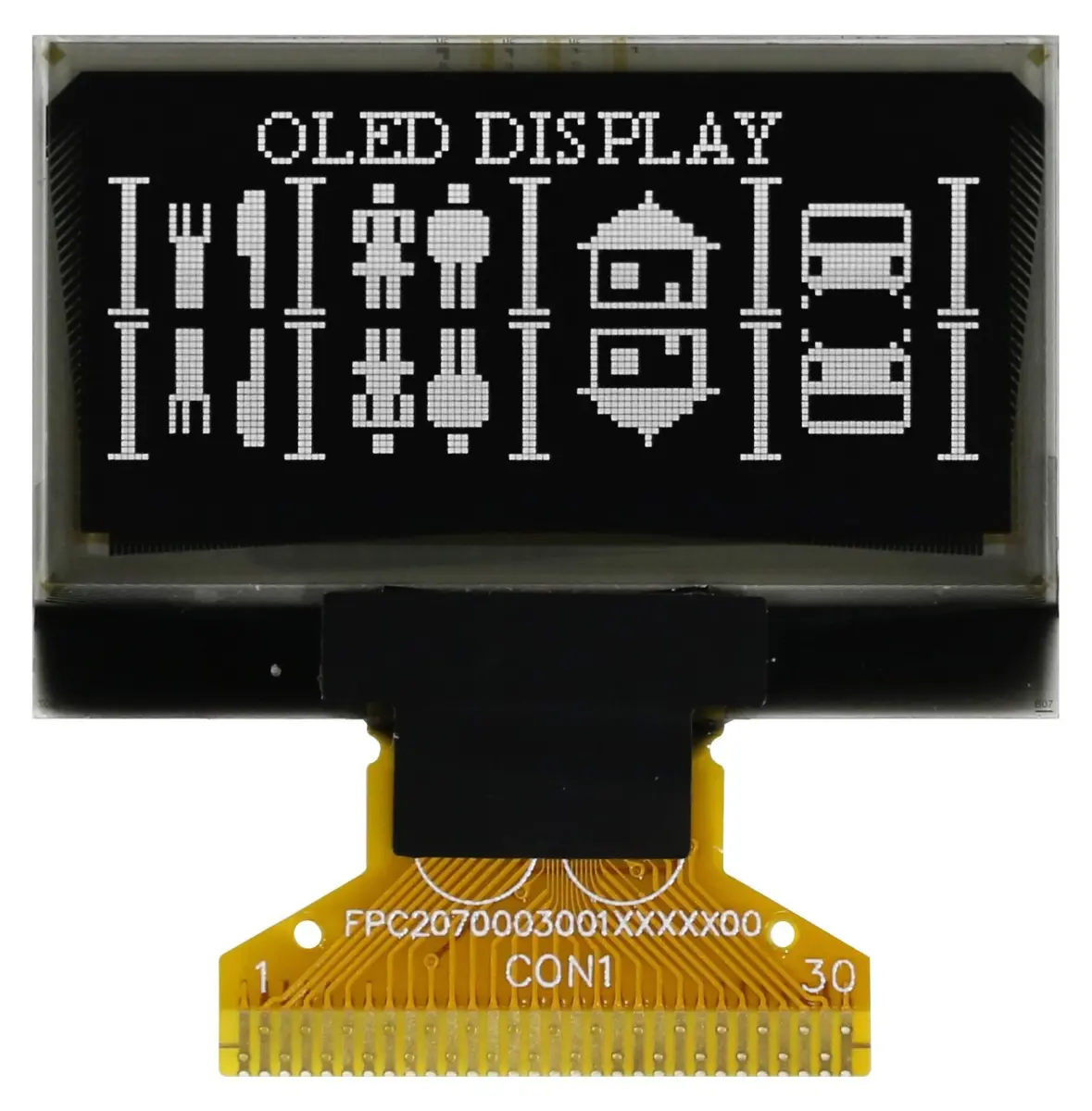

MIDAS DISPLAYS OLED Graphic Display Module 128 x 64 White on Black 3V

The MIDAS DISPLAYS OLED Graphic Display Module is a compact, high-contrast monochrome screen ideal for embedded electronics projects. Featuring a crisp 128 x 64 pixel resolution with a sharp white-on-black display, it offers excellent readability in various lighting conditions. This passive matrix module is designed for low-voltage operation at 3V logic, making it suitable for portable, battery-powered devices.

Its versatility is a key strength, as it supports multiple communication protocols including I2C, SPI, and parallel (6800/8080) interfaces. This allows for easy integration with a wide range of microcontrollers and development boards, such as Arduino, Raspberry Pi, and other embedded systems. The module utilises the MD1106G driver IC to manage the display efficiently.

Constructed using Chip-On-Tab (COT) technology, the module is both robust and slim, with an overall footprint of just 34.5mm x 23mm and a minimal depth. It operates reliably across an extensive temperature range from -40°C to 80°C, ensuring performance in demanding industrial or automotive environments. The active display area measures 29.42mm x 14.20mm, with precise pixel dimensions for detailed graphics and text.

Key Specifications:

• Resolution: 128 x 64 Pixels
• Display Appearance: White on Black
• Logic Voltage: 3V
• Interface Type: I2C, Parallel (6800/8080), SPI (3-wire & 4-wire)
• Driver IC: MD1106G
• Module Size: 34.5mm x 23mm x 1.65mm
• Active Area: 29.42mm x 14.20mm
• Operating Temperature: -40°C to 80°C
• Display Construction: Chip-On-Tab (COT)

This module is perfect for creating custom user interfaces, displaying sensor data, or adding a visual output to prototypes and finished products.
