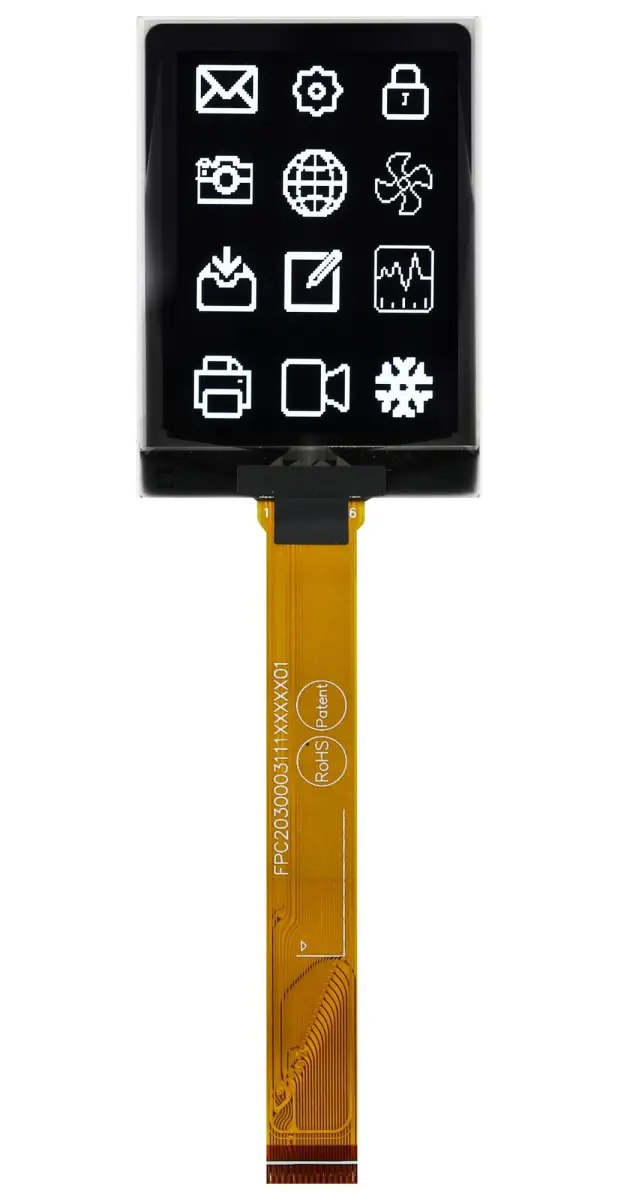

MIDAS DISPLAYS OLED Graphic Display Module 1.92 Inch, 160x128 White on Black

The MIDAS DISPLAYS OLED Graphic Display Module is a compact, high-contrast monochrome screen ideal for a wide range of embedded applications. Featuring a 1.92-inch diagonal display, it offers a sharp resolution of 160 x 128 pixels with a crisp white-on-black appearance for excellent readability in various lighting conditions. The module uses a passive matrix OLED construction, which provides good image quality and reliability.

Its slim profile, with module dimensions of just 34.5mm x 48.8mm x 1.41mm, makes it perfect for space-constrained designs. The display utilises a COT (Chip-On-Tape) construction, contributing to its thin and robust form factor. The active viewing area measures 28.908mm by 39.34mm, with a pixel size of 0.206mm x 0.226mm, ensuring a detailed graphic output.

Key Technical Features

• Multi-Interface Support: Offers exceptional flexibility with support for 6800, 8080 parallel, SPI, and I²C interfaces, allowing easy integration with a broad spectrum of microcontrollers and processors.
• Wide Operating Range: Designed for resilience, it operates reliably in temperatures from -40°C to +80°C, making it suitable for industrial, automotive, and outdoor applications.
• Driver Compatibility: Controlled by the SH1108 IC with a 1/128 duty cycle, it is optimised for efficient graphic rendering.
• Low Voltage Operation: Requires a logic voltage of 3V, aligning with modern low-power electronic designs.

This display module is a versatile and reliable solution for developers and engineers looking to add a clear, graphical user interface to their projects, from portable instruments and consumer electronics to industrial control panels.
