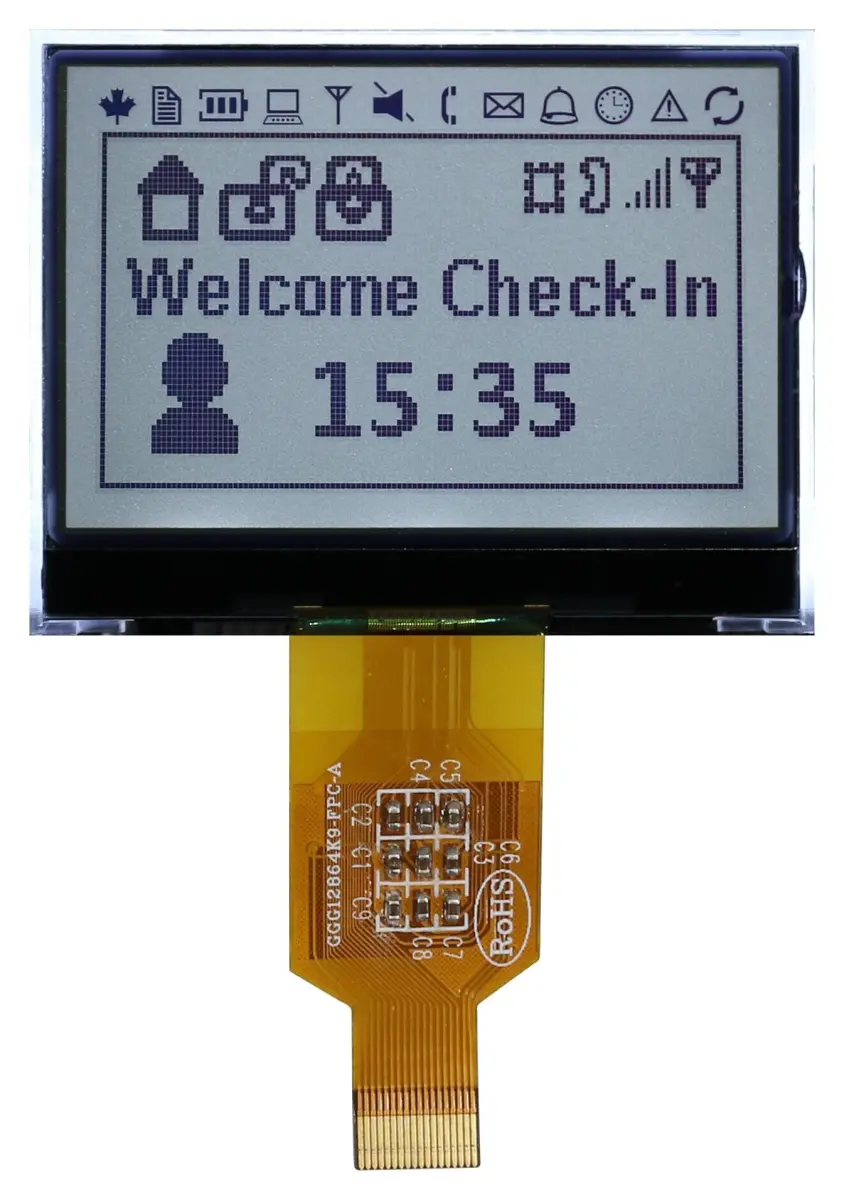

MIDAS DISPLAYS LCD Graphic Display Module, 128 x 64, Black on White, 3.1V

The MIDAS DISPLAYS LCD Graphic Display Module offers a resolution of 128 x 64 pixels, providing clear and crisp visuals for your electronic projects. Featuring an FSTN Positive Transflective display mode, this module ensures readability in various lighting conditions, making it a versatile choice for different environments. The display presents a classic black on white appearance, enhanced by a white backlight for consistent illumination.

Designed with a COG (Chip on Glass) construction, the module integrates the ST7565P IC to drive the parallel interface efficiently. The compact module dimensions of 58.2 x 44.7 x 3.9mm make it suitable for space-constrained applications, while the active area measures 47.76 x 30.29mm with a view area of 52.0 x 33.5mm.

Operating on a logic voltage of 3.1V, this graphic display module is built to perform reliably across a wide temperature range from -20°C to 70°C. The 6 o'clock viewing direction and 1/64 duty cycle further optimise the display for standard viewing angles. With a precise dot size of 0.40 x 0.35mm and a dot pitch of 0.42 x 0.37mm, it delivers excellent detail for graphic interfaces.

Key Specifications

• Resolution: 128 x 64 pixels
• Display Type: FSTN Positive Transflective
• Interface: Parallel
• IC: ST7565P
• Logic Voltage: 3.1V
• Backlighting Colour: White
• Operating Temperature: -20°C to 70°C
