MIKROELEKTRONIKA ADC Click MCP3204 12-Bit ADC Board
ADC Click board with MCP3204 12-bit ADC, 50kSPS, SPI, low power. Ideal for sensing & instrumentation projects.

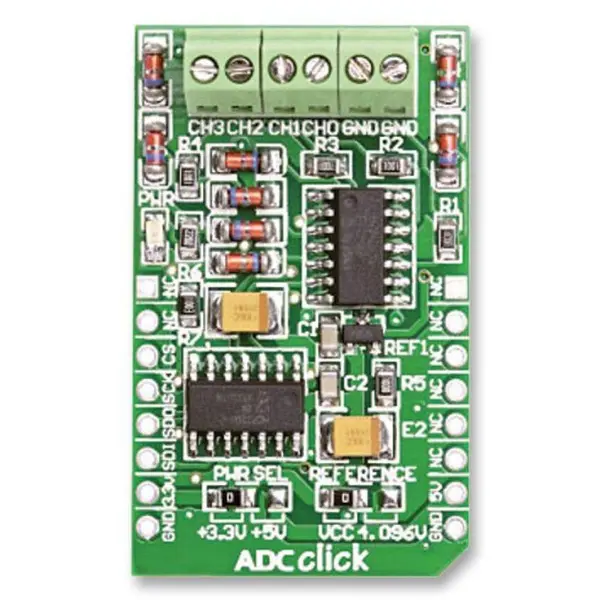

The ADC Click from MIKROELEKTRONIKA is a compact accessory board designed in the mikroBUS form factor, enabling easy integration with compatible development platforms. This board features the MCP3204, a 12-bit analogue-to-digital converter (ADC) that delivers up to 50k samples per second and supports 4 input channels, making it ideal for precision data acquisition tasks.
With a typical low power consumption of 500nA, the ADC Click is well suited for power-sensitive applications. The board communicates via the industry-standard Serial Peripheral Interface (SPI), ensuring straightforward interfacing with a wide range of microcontrollers. It also includes convenient screw terminals for hassle-free wiring, simplifying your development process.
The ADC Click is set to operate at 3.3V by default, but you can easily switch to 5V systems by moving the PWR SEL SMD jumper. Whether you are involved in sensing, instrumentation, signal processing, or test and measurement, this board provides a reliable and efficient solution. Its small footprint and mikroBUS compatibility make it a versatile addition to your electronics toolkit.
Specifications:
- ADC Resolution: 12-bit
- Sampling Rate: 50 kSPS
- Input Channels: 4
- Interface: SPI
- Power Supply: 3.3V (default), 5V selectable
- Power Consumption: 500nA typical
- Dimensions: 43mm x 33mm x 15mm
- Weight: 130 grams
