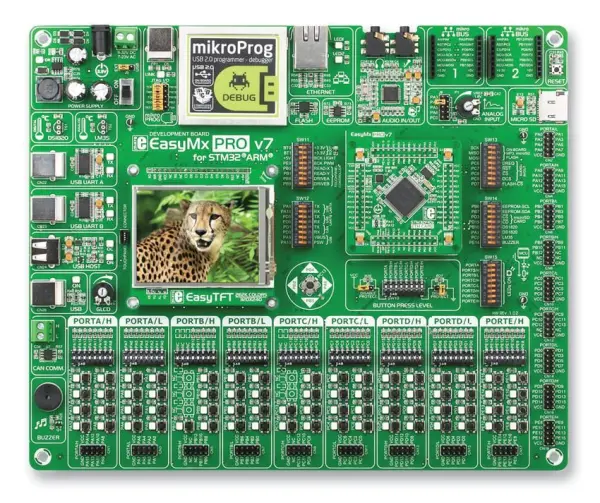

MIKROELEKTRONIKA EasyMx PRO v7 STM32 Development Platform

The MIKROELEKTRONIKA EasyMx PRO v7 is a comprehensive and fully-integrated development platform designed specifically for STM32 microcontrollers from STMicroelectronics. This robust board provides engineers, developers, and students with everything needed to prototype, program, and debug applications with ease. It features an on-board mikroProg programmer and hardware debugger, eliminating the need for external hardware and streamlining the development workflow.

A key component of the board is its vibrant TFT display with a resolution of 320x240 pixels and an integrated touch panel, enabling the creation of interactive user interfaces. For multimedia applications, the platform includes a high-quality stereo MP3 codec with dedicated audio input and output, allowing for sound recording and playback. Storage expansion is facilitated through a MicroSD card slot, perfect for data logging, storing media files, or firmware updates.

Core Features & Specifications

• On-board Programmer/Debugger: Integrated mikroProg eliminates external tool costs.
• Display: 3.2” TFT (320x240) with resistive touch panel.
• Audio: Stereo MP3 decoder/encoder with audio in/out.
• Storage: MicroSD card slot for external memory.
• Supported MCUs: Compatible with a wide range of 32-bit STM32 devices.
• Core Architectures: ARM Cortex-M3 and Cortex-M4.
• Example MCUs: STM32F107VCT6, STM32F207VGT6, STM32F407VGT6.

The kit arrives ready to use and includes the development board, a USB cable for power and communication, and a comprehensive user guide on DVD. Its compact form factor and all-in-one design make the EasyMx PRO v7 an ideal choice for educational purposes, professional prototyping, and evaluating the powerful features of the STM32 microcontroller family.
