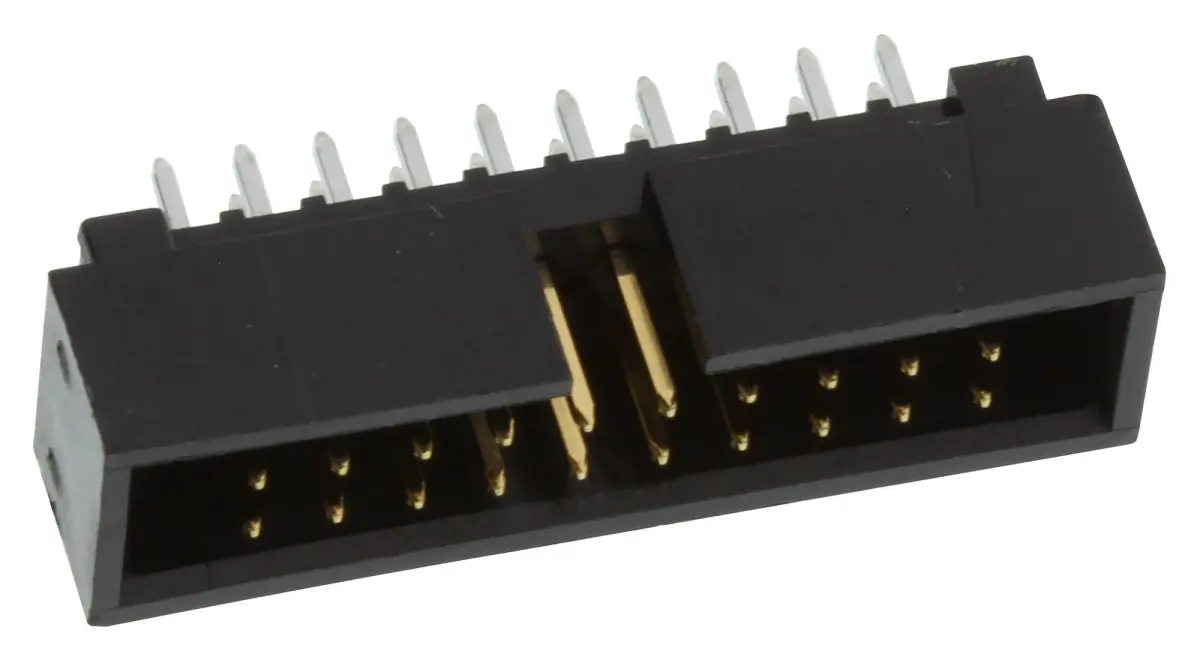

MOLEX / BRAD 2.54mm Pitch C-Grid Header, Low Profile, 2 Row, 20 Way

The MOLEX / BRAD 2.54mm Pitch C-Grid Header is a vertical, shrouded connector designed for secure and reliable electronic connections. Its low-profile, 2-row design makes it an ideal choice for applications where space is at a premium, offering dependable signal integrity without compromising on a compact footprint.

Featuring a full shroud, this 20-way header provides excellent polarisation and protection for the mating pins, preventing incorrect insertion and safeguarding against physical damage. This ensures a robust and foolproof connection every time, critical in demanding electronic environments.

Constructed to high-quality standards, this header is built for durability and repeated mating cycles. The 2.54mm pitch is a common and versatile standard, ensuring compatibility with a wide range of PCB designs and corresponding C-Grid sockets. Its vertical orientation facilitates straightforward board-to-board or board-to-wire connections in a typical perpendicular configuration.

The combination of its shrouded design, precise polarisation, and low-profile construction makes this header a superior choice for creating secure interconnects in prototypes, industrial controls, telecommunications equipment, and consumer electronics where reliable performance is essential.
