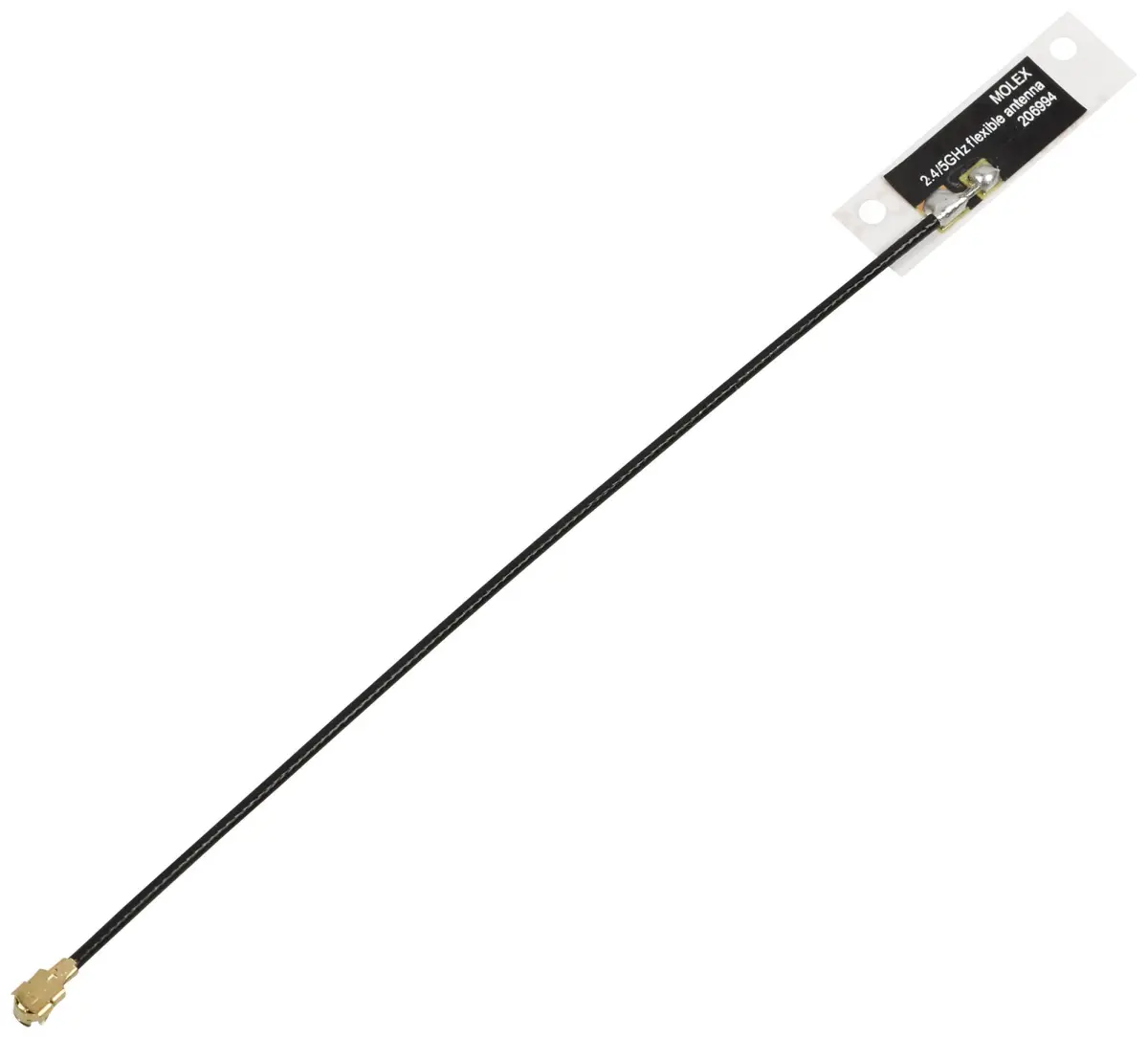

MOLEX/Brad 2.4GHz 5GHz Flexible PCB WiFi Antenna, 100mm Cable

The MOLEX/Brad 2.4GHz / 5GHz Flexible PCB WiFi Antenna is a compact and highly versatile component designed for modern wireless communication needs. Its flexible printed circuit board (PCB) construction allows it to be easily mounted on curved or irregular surfaces, making it ideal for integration into a wide range of electronic devices where space is at a premium.

This antenna features dual-band operation, supporting both the 2.4GHz and 5GHz WiFi frequency bands, ensuring compatibility with the latest wireless networking standards. The integrated 100mm cable provides ample length for flexible routing and connection within an enclosure. With an omnidirectional radiation pattern, it ensures reliable signal reception and transmission from all directions, enhancing connectivity stability.

A key advantage is the adhesive backing, which facilitates a simple, tool-free, and secure mounting process. This eliminates the need for screws or brackets, simplifying the assembly and allowing for a clean, low-profile installation. The antenna is engineered for robust performance, with a gain of 3.6dBi and a 50-ohm input impedance for efficient power transfer.

Key Features & Specifications

• Dual-Band Operation: Supports 2.4GHz and 5GHz (5.15GHz – 5.85GHz) WiFi frequencies.
• Flexible PCB Design: Can conform to various surfaces for optimal placement.
• Omnidirectional Pattern: Provides uniform 360-degree coverage.
• Easy Installation: Features an adhesive mount for quick, secure attachment.
• Integrated Cable: Comes with a 100mm length cable for convenient connection.
• Compact Dimensions: The antenna itself measures just 15.40mm x 6.40mm x 0.15mm.

This reliable antenna is an excellent choice for engineers and product developers looking to add or upgrade wireless functionality in IoT devices, routers, access points, embedded systems, and other electronic equip
