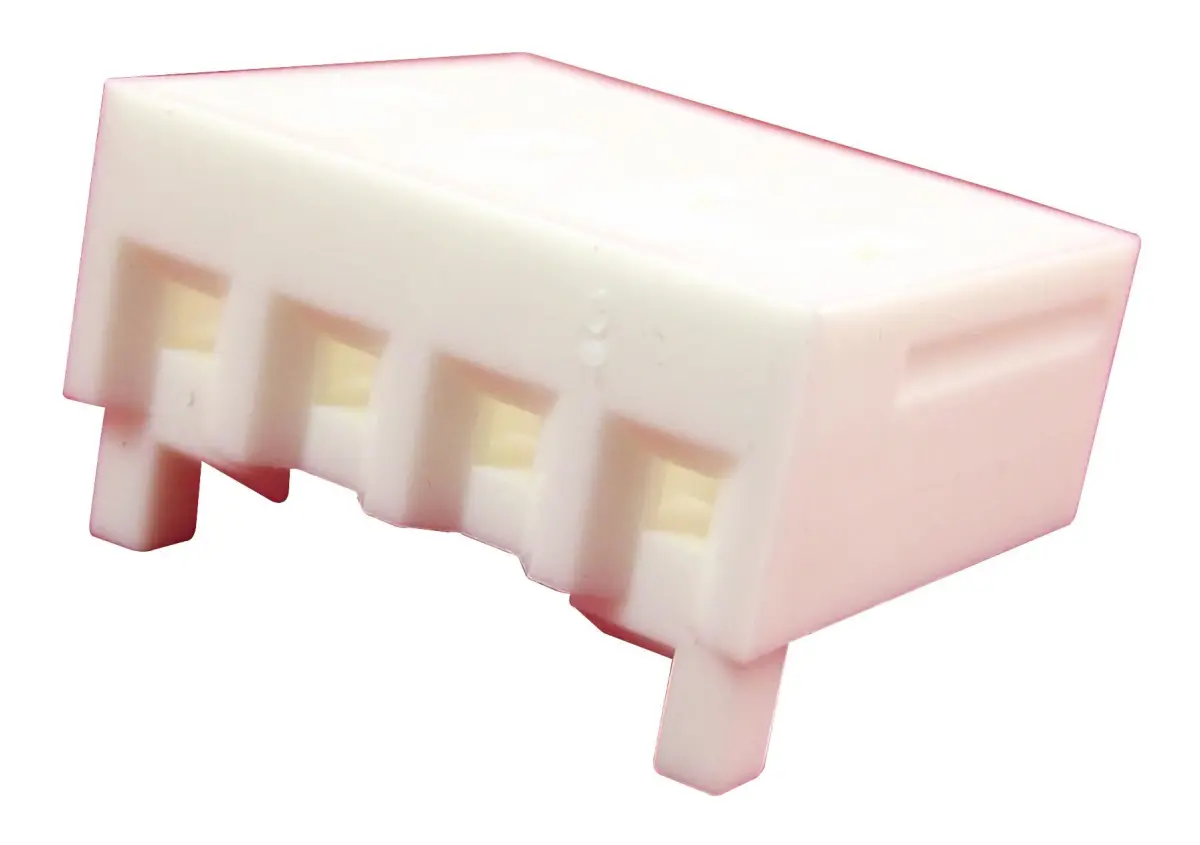

MOLEX / BRAD 4 Way Crimp Terminal Receptacle, 3.96mm Pitch

The MOLEX / BRAD 4 Way Crimp Terminal Receptacle Housing is a robust 1-row KK® connector designed for secure and reliable electrical connections. Constructed from high-temperature nylon and featuring a polyester build, this housing is engineered to withstand demanding environments.

Key design features include a friction ramp and friction lock headers, which work together to ensure a secure and stable connection while preventing accidental disconnection. Polarising ribs and polarising back walls on the housing provide clear orientation, eliminating the risk of mismatched mating. The terminals are equipped with locking tangs for secure retention within the housing.

This receptacle is part of the RPC (Reflow Process Compatible) connector system and features reflow matte tin plating for excellent solderability. It is suitable for both signal applications (KK 254 connector system) and power applications (KK 396 connector system), making it a versatile choice for various electronic assemblies. With a pitch spacing of 3.96mm and 4 positions, it offers a compact and efficient connectivity solution.
