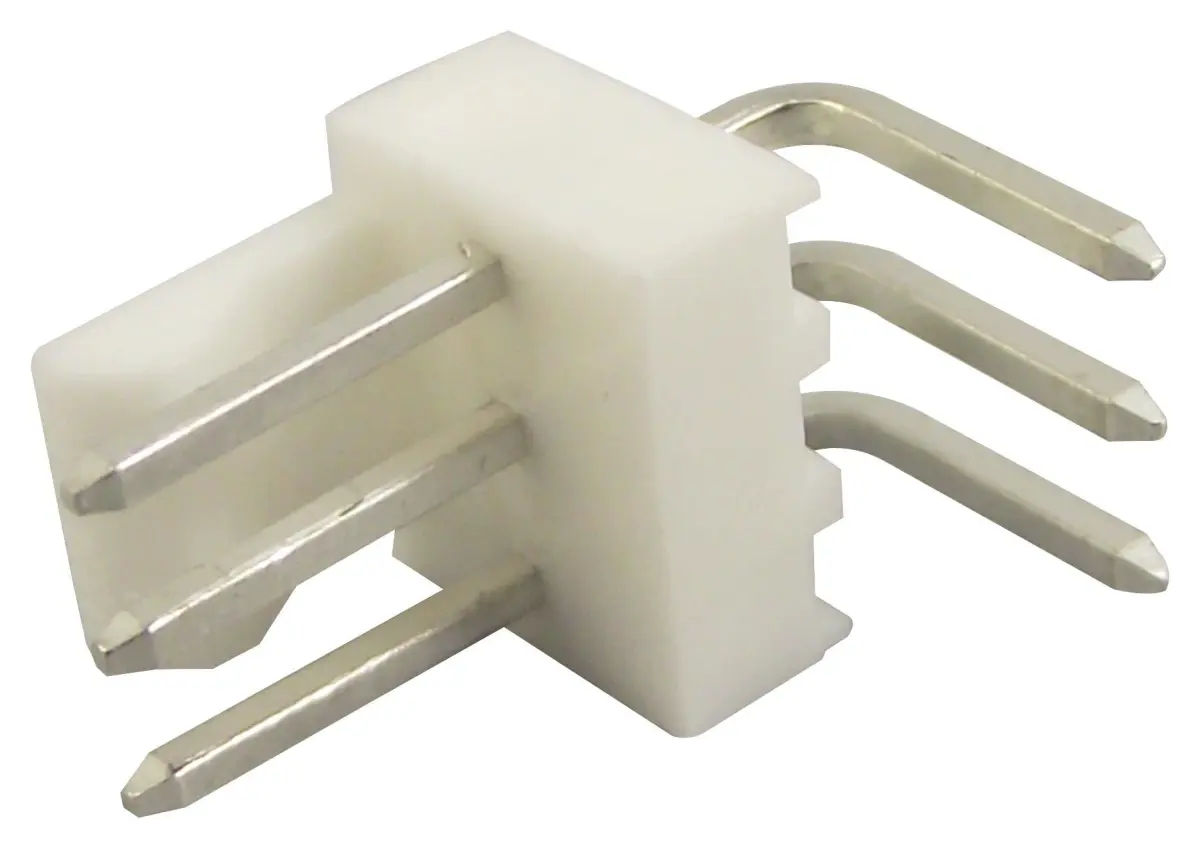

Molex KK 254 3-Way Right Angle PCB Header, Through Hole, 2.54mm

The Molex KK 254 3-Way Right Angle PCB Header is a reliable signal and wire-to-board connector solution, designed for a wide range of applications. Featuring a 2.54mm pitch and 3 contacts in a single row, this header provides a compact and efficient connection for your PCB designs.

Constructed with a natural (white) nylon housing and tin-plated (Sn) brass contacts, this right angle header ensures good conductivity and durability. The friction lock mechanism provides a secure mating hold with compatible housings, reducing the risk of accidental disconnection. The header is partially shrouded, offering some protection to the contacts during handling and mating.

With a UL94V-0 flammability rating, this header meets high safety standards, making it suitable for use in a variety of environments. It is also stackable, allowing for flexible board-to-board configurations. The through-hole right angle termination style makes it easy to solder onto the PCB, creating a strong mechanical and electrical bond.

Specifications

• Connector Systems: Signal, Wire-to-Board
• Pitch Spacing: 2.54mm
• No. of Rows: 1
• No. of Contacts: 3
• Contact Termination Type: Through Hole Right Angle
• Connector Shroud: Partially Shrouded
• Contact Material: Brass
• Contact Plating: Tin Plated
• Flammability Rating: UL94V-0
• Maximum Current per Contact: 4A
• Maximum Voltage: 250V
• Product Range: KK 254 7478

This header mates with compatible Molex parts (2695, 6471, 7880, 4455, 7720) for a complete connection system. Ideal for use in automotive, communications/networking, consumer electronics, and medical applications.
