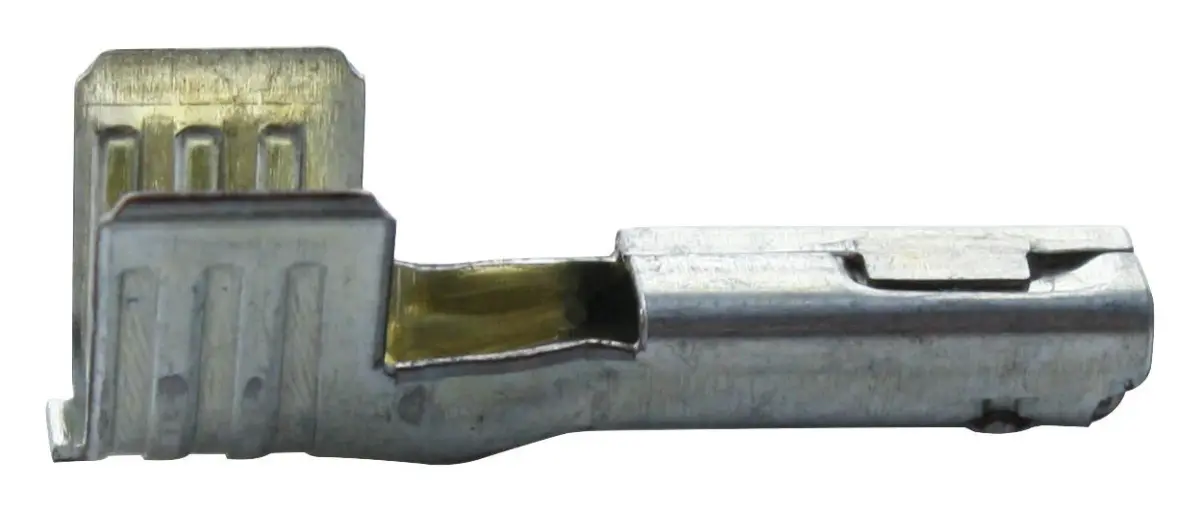

MOLEX MX150L 19434 Socket Contact, 10-12 AWG Crimp

The MOLEX MX150L 19434 is a socket contact designed for the rugged, environmentally sealed MX150L connector series. This system meets the demanding requirements of industrial applications, supporting both low-level signals and power applications up to 40A. Its robust construction makes it suitable for challenging environments from marine to off-road construction equipment.

A key innovation is the integrated mat-seal design. Based on 1.50mm blade-type terminals, it utilises a single silicone-based seal with individual wire openings and a seal cap. This design eliminates the need for separate wire seals, simplifying assembly, reducing labour costs, and providing secure retention and strain relief for the crimp assembly. The system delivers reliable IP67 protection against dust and temporary immersion.

The MX150L series offers versatile configurations including wire-to-wire, wire-to-panel, and wire-to-board, providing flexibility for various industrial setups. It is important to note that this connector system is designed for industrial use and is not validated for specific automotive standards such as USCAR-2, USCAR-25, GMW3191, or Toyota Connector Spec (TCS).

Key Specifications

• Contact Type: Socket
• Termination: Crimp
• Wire Compatibility: 10 AWG (Max) to 12 AWG (Min)
• Contact Material: Copper Alloy
• Contact Plating: Tin
• Sealing: Integrated mat-seal for IP67 protection
• Compatibility: For use with Molex MX150L 19432 Series Receptacle Housing Connectors

With its durable copper alloy construction, tin plating for reliable conductivity, and innovative sealing technology, this contact ensures a secure, long-lasting connection for critical power and signal circuits in harsh industrial conditions.
