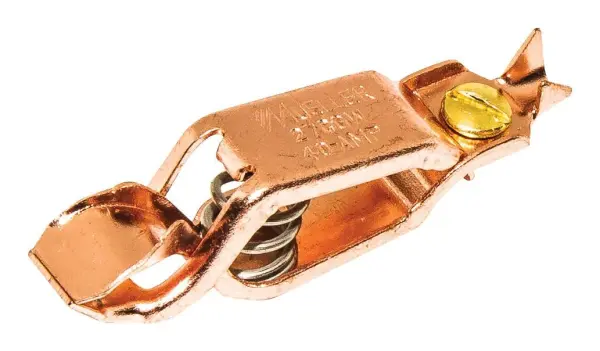

Mueller Electric Copper Geophone Clip 40A, 61.1mm

The Mueller Electric Copper Geophone Clip is a robust, general-purpose component designed for secure attachment to seismograph rings in geophysical surveys. Featuring a durable copper construction, it offers superior conductivity and longevity in field applications. Its key advantage is a wider jaw design, which provides better holding strength and a more reliable connection to the target surface, ensuring consistent performance during seismic data acquisition.

This clip is fully compatible with Mueller brand BU-29 PVC insulators, facilitating easy integration into existing setups. It offers versatile installation with two connection options: it can be attached to a wire via a secure crimp connection or using a screw terminal, providing flexibility for different field wiring requirements and technician preferences.

Crafted for reliability, the clip has a current rating of 40A, making it suitable for demanding electrical connections in monitoring equipment. With a maximum jaw opening of 16mm, it can accommodate a variety of seismograph ring sizes and related components. The compact and efficient design, with an overall length of 61.1mm, ensures it is easy to handle and install in confined spaces typical of survey equipment.

Key Features & Specifications

• Primary Use: Clipping onto seismograph rings for geophysical and seismic testing.
• Material: High-conductivity copper for reliable signal transmission.
• Connection: Dual crimp or screw connection for wire attachment.
• Compatibility: Designed for use with Mueller BU-29 PVC insulators.
• Current Rating: 40 Amps.
• Jaw Design: Wider jaw for enhanced holding strength.
• Dimensions: 61.1mm (Length) x 33mm (Width) x 15mm (Depth).

An essential tool for geophysicists, survey engineers, and technicians, the Mueller Electric Geophone Clip delivers a dependable, high-strength connection that
