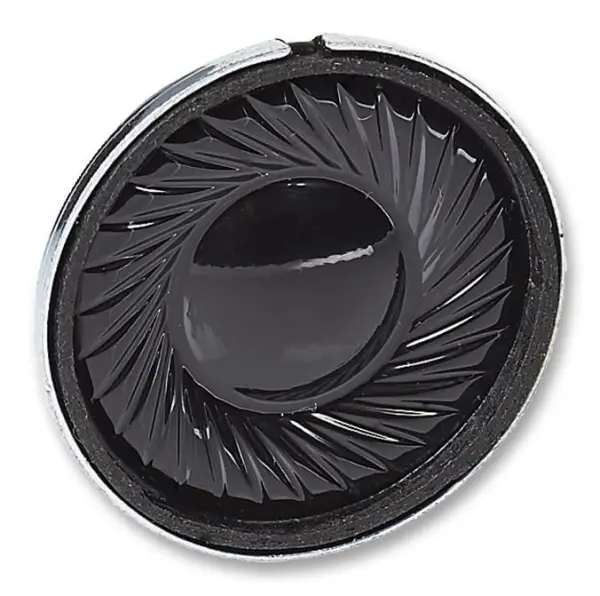

Multicomp Pro 23mm Miniature Speaker, 32ohm, 500mW

The Multicomp Pro MCABS-231-RC is a compact 23mm miniature speaker engineered for reliable audio output in a wide range of electronic applications. Featuring a PET diaphragm and paper gasket within an SPCC frame, this speaker delivers clear sound with a nominal power rating of 500mW, generating a sound pressure level of 87dB.

Designed for bare mount installation, its round shape and precise dimensions make it ideal for integration into space-constrained devices. The speaker operates with a 32ohm impedance and has a resonant frequency of 800Hz, offering a broad frequency response from 800Hz up to 10kHz for detailed audio reproduction.

Key Features & Applications

Constructed from durable materials, this speaker is a versatile component suited for professional and hobbyist projects alike. Its robust build ensures consistent performance across various environments.

Primary applications include medical electronics, consumer electronics, clock and timing devices, test instrumentation, and automotive systems. It is also perfectly suited for use in computers and peripherals, remote sensing and metering equipment, safety systems, and agricultural technology, providing a reliable audio solution where it matters most.

Technical Specifications

• Driver Type: Miniature
• Impedance: 32ohm
• Nominal Power Rating: 500mW
• Maximum Power Rating: 1W
• Resonant Frequency: 800Hz
• Sound Pressure Level (SPL): 87dB
• Speaker Shape: Round
• Frequency Response: 800Hz to 10kHz
• Product Range: MP ABS Series
• Speaker Mounting: Bare Mount
• Product Dimensions: 23mm diameter x 5.2mm depth
• Frame Material: SPCC
• Diaphragm Material: PET
• Gasket Material: Paper
