Multicomp Pro 3U Eurocard Prototyping Board, 100x160mm
Versatile 100x160mm prototyping board for SMD and conventional components, with DIN 41612 compatibility.

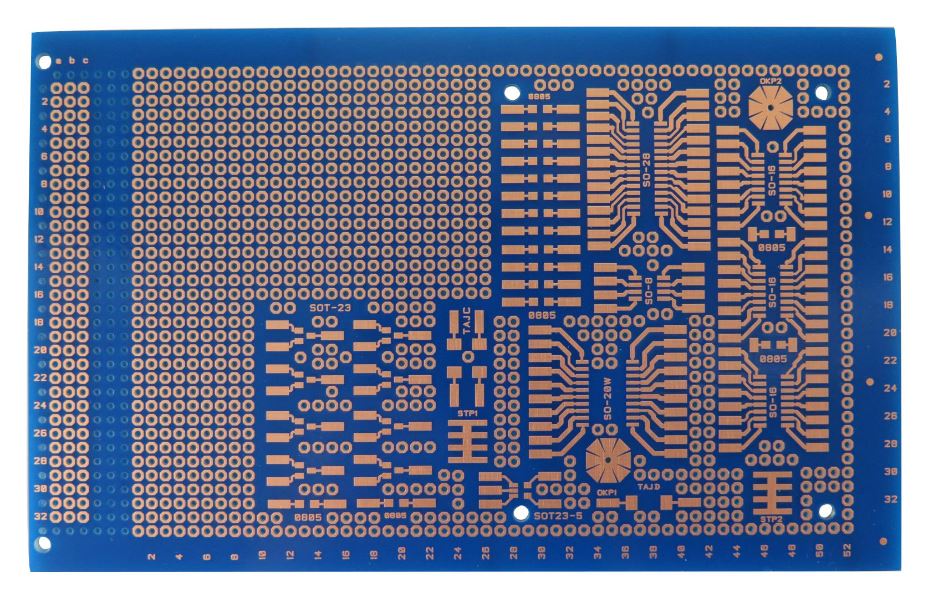

The Multicomp Pro Oktapad Single Height 3U Eurocard Prototyping Board is a highly versatile experimental development board designed for seamless integration of SMD (Surface Mount Devices) with conventional components. Its professional layout features popular SMD footprints with fan-outs and easy-to-wire solder pads, making it ideal for prototyping and electronic experimentation.
This board includes DIN 41612 connector mounting holes (32/64/96 way) at one end, ensuring compatibility with standard Eurocard configurations. A silkscreen reference on the component side enhances usability, while the 1.6mm epoxy glass composite construction guarantees durability.
Additionally, four fixing holes allow attachment of a piggy-back board, expanding prototyping possibilities. With precise dimensions (100x160mm) and a hole diameter of 1.02mm, this board provides a reliable foundation for circuitry and component testing in professional and educational settings.
Key Features:
- Eurocard format compatible with 3U chassis
- SMD-friendly design with accessible solder pads
- DIN 41612 connector positions for modular expansion
- Silkscreened component references for easy assembly
- Piggy-back board mounting capability
- Prototyping SMD circuits
- Educational electronics projects
- Modular system development
- Integration with DIN 41612 connector systems
- **Board Type:** Eurocard
- **Board Material:** Epoxy Glass Composite
- **Hole Diameter:** 1.02mm
- **External Height:** 160mm
- **External Width:** 100mm
- **Board Thickness:** 1.6mm
- **Weight:** 50g
