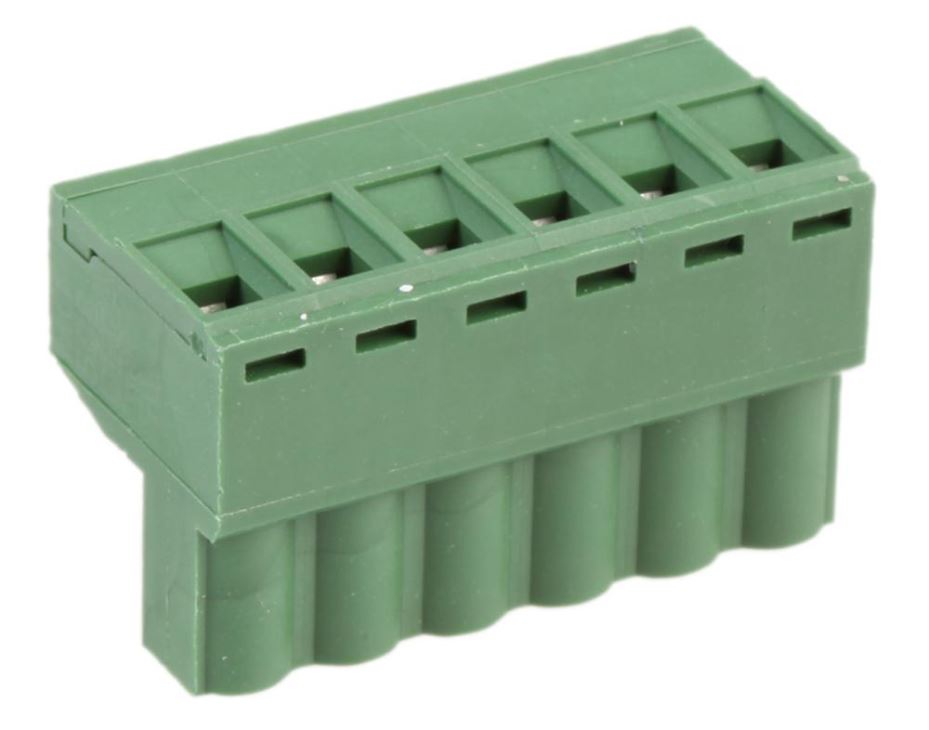

Multicomp Pro 5.08mm 6-Way Pluggable Terminal Block, 16A, 300V
High-quality 6-way pluggable terminal block from Multicomp Pro, 16A/300V rated, for industrial use.
The Multicomp Pro MC000180 Pluggable Terminal Block offers reliable and secure electrical connections with its 6-way configuration. Designed for industrial applications, this terminal block features a durable green polyamide 66 insulating body and high-quality tin-plated phosphor bronze contacts ensuring excellent conductivity and resistance to corrosion.
This terminal block includes a zinc + Cr³ screw and utilises a screw wire connection method, providing a robust and stable electrical connection. It supports wire sizes from 24AWG to 12AWG and is rated for a maximum current of 16A and a voltage of 300V.
With a minimum insulation withstand voltage of 2000VAC and an insulation resistance of >2000MR at 500V, this terminal block ensures high safety standards. The operating temperature range is from -40°C to 105°C, making it suitable for various demanding environments.
Key Specifications
- Pitch Spacing: 5.08mm
- Number of Positions: 6 ways
- Wire Size Range: 24AWG to 12AWG
- Connection Method: Screw
- Rated Current: 16A
- Rated Voltage: 300V
- Insulation Resistance: >2000MR at 500V
- Operating Temperature: -40°C to 105°C
Please note that due to high market demand, lead times for this product may fluctuate.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Industrial applications
- Material: Green polyamide 66 insulating body
- Contacts: Tin-plated phosphor bronze
- Screw: Zinc + Cr³
- Wire Connection: Screw
- Wire Size Range: 24AWG to 12AWG
- Rated Current: 16A
- Rated Voltage: 300V
- Insulation Withstand Voltage: 2000VAC
- Insulation Resistance: >2000MR at 500V
- Screw Torque: 7 lb-inch
- Operating Temperature Range: -40°C to 105°C
- Weight: 10g
Always follow local regulations and product guidance.
