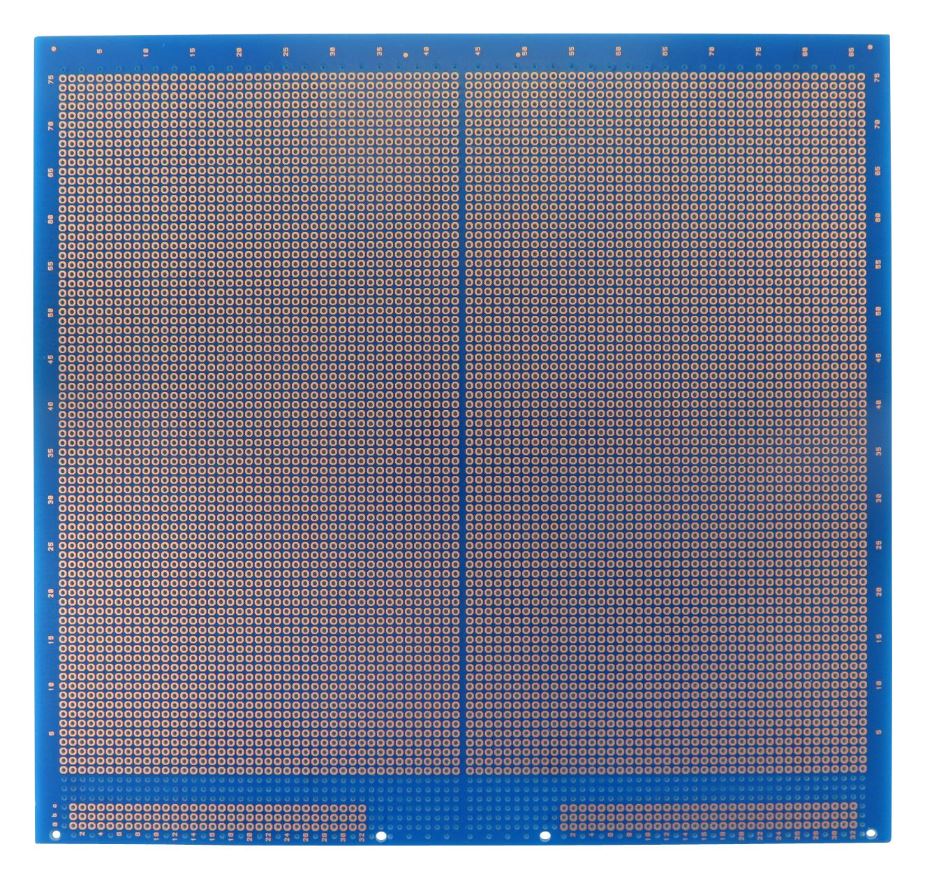

MULTICOMP PRO 6U Eurocard Prototyping Board, 223x160mm, Double Height
Versatile 6U Eurocard prototyping board with octagonal pads, silkscreen grid & DIN 41612 mounting.
The MULTICOMP PRO Oktapad Double Height 6U Eurocard Prototyping Board is a versatile solution for electronic prototyping, offering complete flexibility for various assembly and wiring techniques, including wire wrapping and discrete component wiring. Its octagonal pads provide an enhanced soldering surface, ensuring ease of use and durability.
Key Features
- Large Solder Surface: Octagonal-style pads offer a generous soldering area for secure connections.
- Silkscreen Reference: The component side includes silkscreen references for accurate part placement.
- Hole Matrix Grid: The solder side features a grid system to assist with precise component and wire positioning.
Design & Usability
This PCB includes a 3.81mm central gap, making it easier to divide circuits while testing. It also has DIN 41612 connector mounting holes (32/64/96 way) at one end, providing broad compatibility with Eurocard-standard components. The board is designed for maximum flexibility, allowing for varied wiring techniques to suit any prototyping need.
Built for Durability
Crafted from high-quality epoxy glass composite, the board ensures reliability and longevity. Whether for hobbyist electronics, prototyping, or educational purposes, this Eurocard PCB delivers professional-grade performance.
Specifications
- Material: Epoxy Glass Composite
- Hole Diameter: 1.02mm
- Board Dimensions (External): 220mm (Height) x 233.4mm (Width)
- Board Thickness: 1.6mm
- Centre Gap: 3.81mm
- Weight: 150g
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Electronics prototyping
- Wire wrapping projects
- Discrete component wiring
- PCB testing and development
- Board Type: Eurocard
- Material: Epoxy Glass Composite
- Hole Diameter: 1.02mm
- External Height: 220mm
- External Width: 233.4mm
- Board Thickness: 1.6mm
- Centre Gap: 3.81mm
- Weight: 150g
