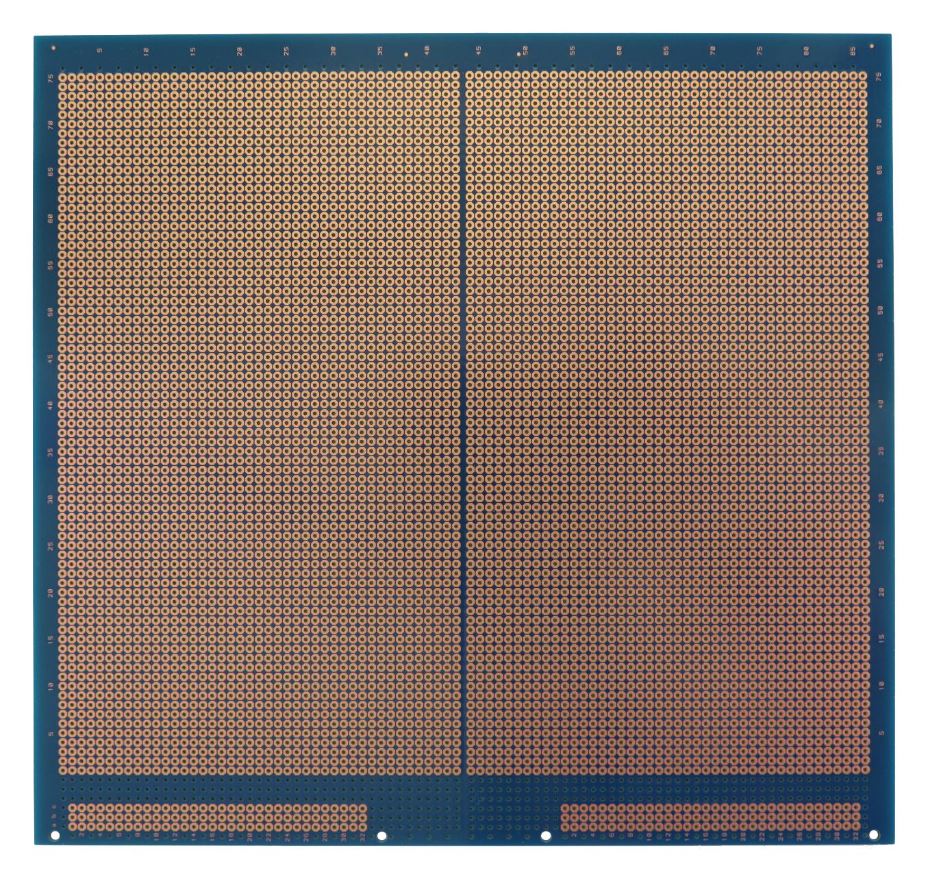

Multicomp Pro 6U Eurocard Prototyping Board, 233x220mm, Double-Sided
Versatile double-sided Eurocard prototyping board with silkscreen and grid references, ideal for electronic projects.
The Multicomp Pro 6U Eurocard Prototyping Board is a general-purpose PCB designed for maximum flexibility in electronic prototyping. Its double-sided construction with a colander ground plane ensures excellent signal screening, making it ideal for various assembly and wiring techniques, including wire wrapping and discrete component wiring.
Featuring octagonal pads, this board provides a larger soldering surface for easier and more reliable connections. The component side includes silkscreen references, while the solder side features a hole matrix grid for accurate component and wiring placement.
Key Features:
- Double-sided board with colander ground plane
- 3.81mm centre gap for flexible prototyping
- DIN 41612 connector mounting holes (32/64/96 way)
- Silkscreen references on component side
- Grid references on solder side
- Large octagonal pads for enhanced soldering
This Eurocard PCB is perfect for electronics enthusiasts, students, and professionals looking for a reliable and versatile prototyping solution.
- Electronic prototyping
- Wire wrapping projects
- Discrete component wiring
- Circuit testing and development
- Board Type: Eurocard
- Board Material: Epoxy Glass Composite
- Hole Diameter: 1.02mm
- External Height: 220mm
- External Width: 233.4mm
- Board Thickness: 1.6mm
- Weight: 150g
