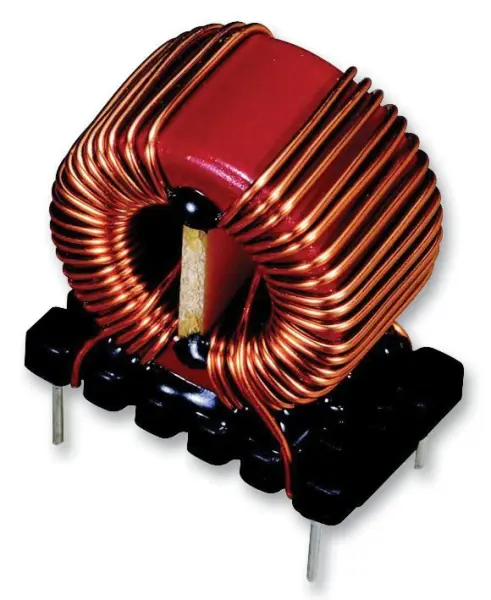

Multicomp Pro MP T18 Series Common Mode Choke, 1mH, 6A

The Multicomp Pro MP T18 Series Common Mode Choke is a through-hole component designed for a wide array of general electronic applications, providing effective electromagnetic interference (EMI) suppression. Its construction ensures reliable performance across a broad operational temperature spectrum, making it a versatile choice for various circuit designs. This choke is engineered to filter out common-mode noise, which is essential for maintaining signal integrity and improving the overall electromagnetic compatibility (EMC) of your electronic systems.

With a precise inductance value of 1mH and a substantial DC current rating of 6A, it can handle significant power while maintaining a low DC resistance of just 0.01ohm. This high current rating and low resistance contribute to minimal power loss and heat generation during operation, enhancing the efficiency and reliability of your application. Its robust design is suitable for demanding environments, ensuring consistent filtering performance.

Key Specifications & Features

• Inductance: 1mH
• DC Current Rating: 6A
• DC Resistance: 0.01ohm maximum
• Operating Temperature Range: -25°C to +85°C
• Mounting Type: Through-hole
• Product Series: MP T18
• Compact Dimensions: 43mm (Height) x 33mm (Width) x 15mm (Depth)
• Lightweight Design: Weighs approximately 4 grams

The through-hole design facilitates secure and straightforward mounting onto printed circuit boards (PCBs), offering strong mechanical bonds. Its compact form factor allows for efficient use of board space without compromising on performance. Ideal for integration into power supplies, motor drives, communication interfaces, and other industrial control systems where noise suppression is critical.
