MULTICOMP PRO Oktapad 3U Double-Sided Eurocard Prototyping Board, 100x160mm
Double-sided 100x160mm prototyping board with SMD footprints, colander ground plane & DIN 41612 connector holes.

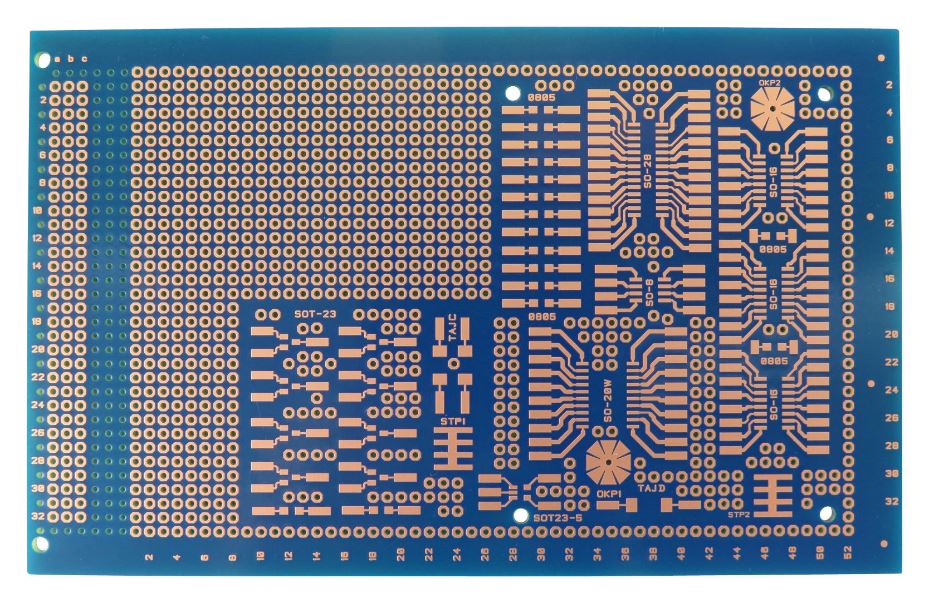

The MULTICOMP PRO Oktapad 3U Double-Sided Eurocard Prototyping Board is an experimental development board designed to simplify the wiring of Surface Mount Devices (SMDs) with conventional components. Its Oktapad format features popular SMD footprints with fan-outs and easy-to-wire solder pads, providing a versatile platform for prototyping.
The board includes a colander ground plane on the component side to enhance signal integrity, and it supports additional connectivity options with DIN 41612 connector mounting holes (32/64/96 way). A silkscreen reference on the component side aids in component placement and assembly accuracy.
For added flexibility, this prototyping board provides four fixing holes for attaching a piggy-back board, making it suitable for layered circuit designs. Its 1.6mm-thick epoxy glass composite construction ensures durability, while the 100x160mm dimensions align with standard Eurocard specifications.
Applications
- Suitable for prototyping SMD and through-hole component circuits
- Ideal for breadboarding and experimental PCB design
- Useful for educational electronics projects and workshops
Specifications
- Board Type: Eurocard
- Board Material: Epoxy Glass Composite
- Special Feature: Colander ground plane
- Special Feature: DIN 41612 connector mounting options (32/64/96 way)
- Hole Diameter: 1.02mm
- Dimensions (W x H): 100 x 160mm
- Thickness: 1.6mm
- Included Features: Silkscreen reference, piggy-back board mounting holes
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Prototyping SMD and through-hole circuits
- Breadboarding experimental PCB designs
- Educational electronics projects
- Workshops and lab work
- Material: Epoxy Glass Composite
- Board Type: Eurocard
- Double-Sided Construction
- Colander Ground Plane
- DIN 41612 Connector Mounting Holes (32/64/96 way)
- Silkscreen Reference (Component Side)
- Piggy-Back Board Mounting Holes (4x)
- Hole Diameter: 1.02mm
- Board Thickness: 1.6mm
- External Height: 160mm
- External Width: 100mm
- Weight: 50g
