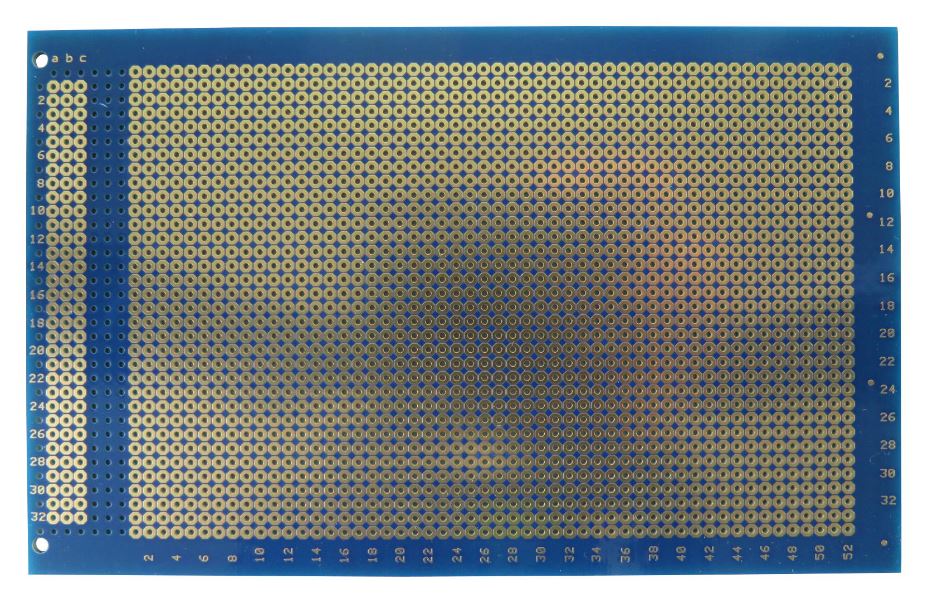

MULTICOMP PRO Oktapad Eurocard PCB, 3U Double-Sided, 100x160mm
Versatile double-sided Eurocard PCB with octagonal pads, DIN 41612 support & silkscreen references. Ideal for prototyping.
The MULTICOMP PRO Oktapad Single Height 3U Double-Sided Eurocard Prototyping Board PCB is designed for general-purpose prototyping with total flexibility. This PCB allows for various assembly or wiring techniques, including wire wrapping and discrete component wiring, making it ideal for electronic projects and experiments.
The board features octagonal pads, which provide a larger soldering surface for easier and more reliable connections. Silkscreen references on the component side and a hole matrix grid on the solder side ensure accurate component and wiring placement.
Key Features
- Double-sided board with a colander ground plane for improved screening and signal integrity
- DIN 41612 connector mounting holes at one end (32/64/96 way) for compatibility with Eurocard systems
- High-quality epoxy glass composite construction for durability
- Precise hole diameter of 1.02mm for reliable component mounting
Specifications
- Board Type: Eurocard
- Material: Epoxy Glass Composite
- Hole Diameter: 1.02mm
- External Height: 100mm
- External Width: 160mm
- Board Thickness: 1.6mm
Perfect for engineers, hobbyists, and educators, this prototyping PCB provides the flexibility and reliability needed for versatile electronics projects.
- General-purpose electronic prototyping
- Wire wrapping projects
- Discrete component wiring
- Eurocard-compatible systems
- Double-sided with colander ground plane
- Octagonal solder pads
- Silkscreen reference on component side
- Hole matrix grid on solder side
- DIN 41612 connector mounting holes (32/64/96 way)
- Board Type: Eurocard
- Material: Epoxy Glass Composite
- Hole Diameter: 1.02mm
- External Height: 100mm
- External Width: 160mm
- Board Thickness: 1.6mm
- Weight: 50g
