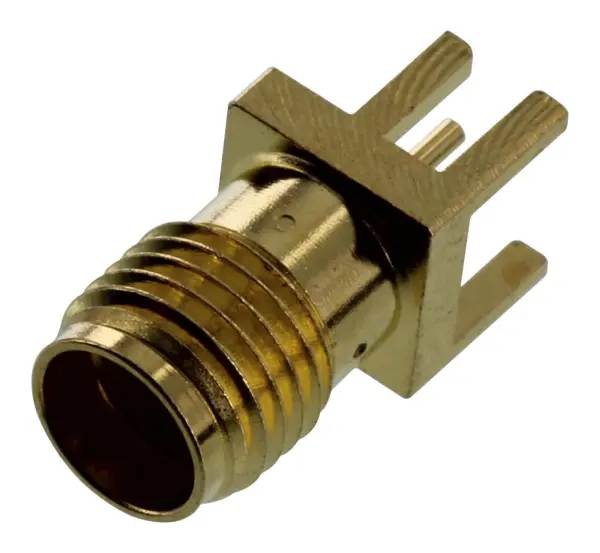

Multicomp Pro SMA End Launch Jack
SMA end launch jack for PCB edge. Ideal for RF prototyping and test fixtures. Clamps securely.
The Multicomp Pro SMA End Launch Jack is a precision RF connector designed to transition board traces directly to a threaded SMA connection. This end launch jack clamps onto the edge of a PCB, providing a secure and reliable interface for high-frequency signals.
Widely used in RF prototyping, evaluation boards, and test fixtures, this connector simplifies the process of connecting coaxial cables to circuit boards. Its robust construction ensures consistent performance and durability, making it an essential component for engineers and technicians working on RF projects.
The compact design, with a height of 43 mm, width of 33 mm, and depth of 15 mm, allows for easy integration into tight spaces. Whether you are developing a new prototype or setting up a test bench, this SMA end launch jack offers a practical and efficient solution.
Key Benefits:
- Direct transition from board traces to SMA connection
- Ideal for high-frequency RF applications
- Simple clamp-on installation for PCB edge
- Suitable for a wide range of RF testing and development scenarios
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
