Multimec Tactile Switch 300gf 24V DC 50mA

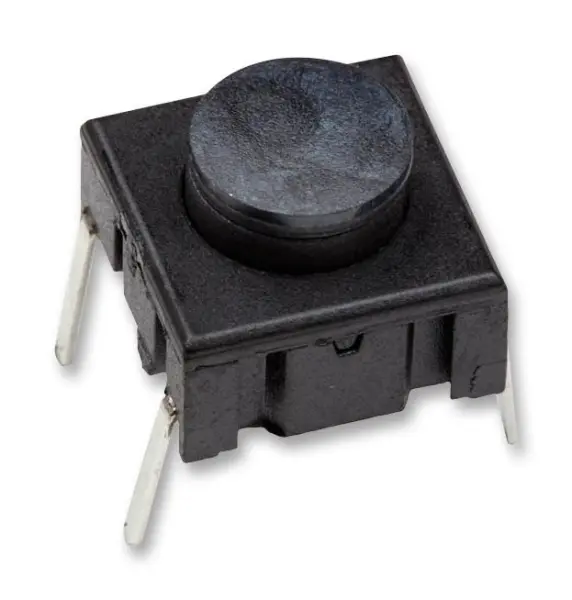

The Multimec RA3ETH9-08-0 Tactile Switch is a reliable and durable non-illuminated, single-pole (SP) through-hole switch designed for demanding industrial applications. It features momentary action with a top-actuated round button, providing a clear tactile response for operator feedback. The switch is engineered with high-temperature PC terminals, ensuring stable performance even in harsh environments.

This tactile switch is rated for 10000000 cycles, offering a long operational lifespan and reducing the need for frequent replacements. It has an actuating force of 300gf and a contact rating of 50mA at 24V DC, making it suitable for low-power control circuits. With an IP67 protection rating, it is completely protected against dust ingress and temporary immersion in water, ensuring reliable operation in challenging conditions.

The switch operates over a wide temperature range of -40°C to 160°C, making it ideal for use in extreme environments such as industrial machinery, outdoor equipment, and automotive applications. Its compact dimensions of 10mm x 10mm and through-hole mounting make it easy to integrate into existing PCB designs.

Specifications:

• Actuator Style: Round Button
• Actuator Orientation: Top Actuated
• Switch Mounting: Through Hole
• Actuating Force: 300gf
• Contact Rating: 50mA at 24V DC
• Switch Dimensions (L x W): 10mm x 10mm
• IP Rating: IP67
• Operating Temperature Range: -40°C to 160°C
• Operating Life: 10,000,000 cycles
• Illumination: Non Illuminated
• Terminal Material: High-temperature PC
