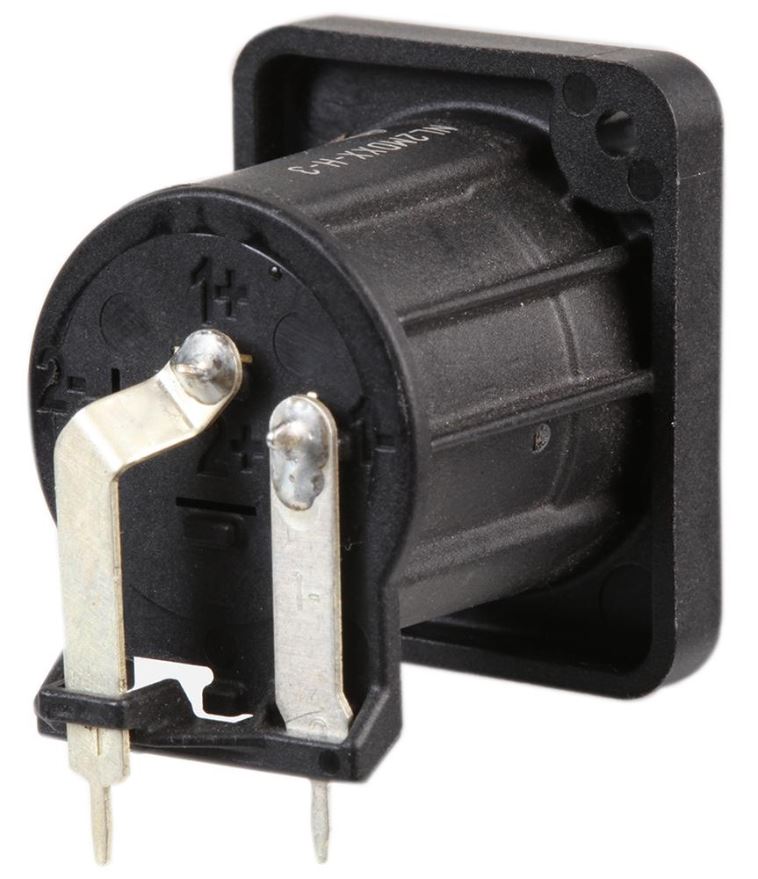

NEUTRIK 2 Pole SpeakON Chassis Plug, Black, D Size, PCB Mount
NEUTRIK 2-pole SpeakON chassis plug with PCB mount. IEC certified, 25A rating for professional audio applications.
The NEUTRIK 2 Pole SpeakON Chassis Plug Connector in black D size is designed for reliable professional audio connections. This horizontal PCB mount connector features a precise keyway for secure mating and a metal insert in the locking area for enhanced durability.
Key Features
- IEC 61984 certified & IEC 62368-1 compliant for safety and reliability
- Glass reinforced V-0 materials make it extremely robust and dependable
- Accurate twist lock latching system ensures secure connections
- Airtight design optimised for speaker applications
- Copper alloy plated contacts for excellent conductivity
Performance Specifications
- Contact resistance: ≤ 2mΩ
- Dielectric strength: 2.8 kVac
- Insulation resistance: >0.1 GΩ (after damp heat test)
- Rated current: 25A RMS continuous (higher audio rating possible depending on signal)
Installation Note: This 2-pole connector does not intermate with 4-pole cable connectors, ensuring proper connection matching.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Professional audio equipment
- Speaker connections
- Sound system installations
- PA systems
- Certifications: IEC 61984 certified, IEC 62368-1 compliant
- Material: Nylon 6.6 (Polyamide 6.6) body with metal insert
- Contact Plating: Copper alloy
- Mounting: Horizontal PCB mount
- No. of Contacts: 2
- Gender: Plug
- Flange Size: D Size
- Colour: Black
- Contact Resistance: ≤ 2mΩ
- Dielectric Strength: 2.8 kVac
- Insulation Resistance: >0.1 GΩ
- Rated Current: 25A RMS continuous
- Weight: 10g
