NEUTRIK 3-Pole Male XLR Plug, PCB Mount, Gold Contacts
NEUTRIK 3-pole XLR plug with gold contacts, PCB mount & IP65 rating. Ideal for audio equipment & fixed installations.

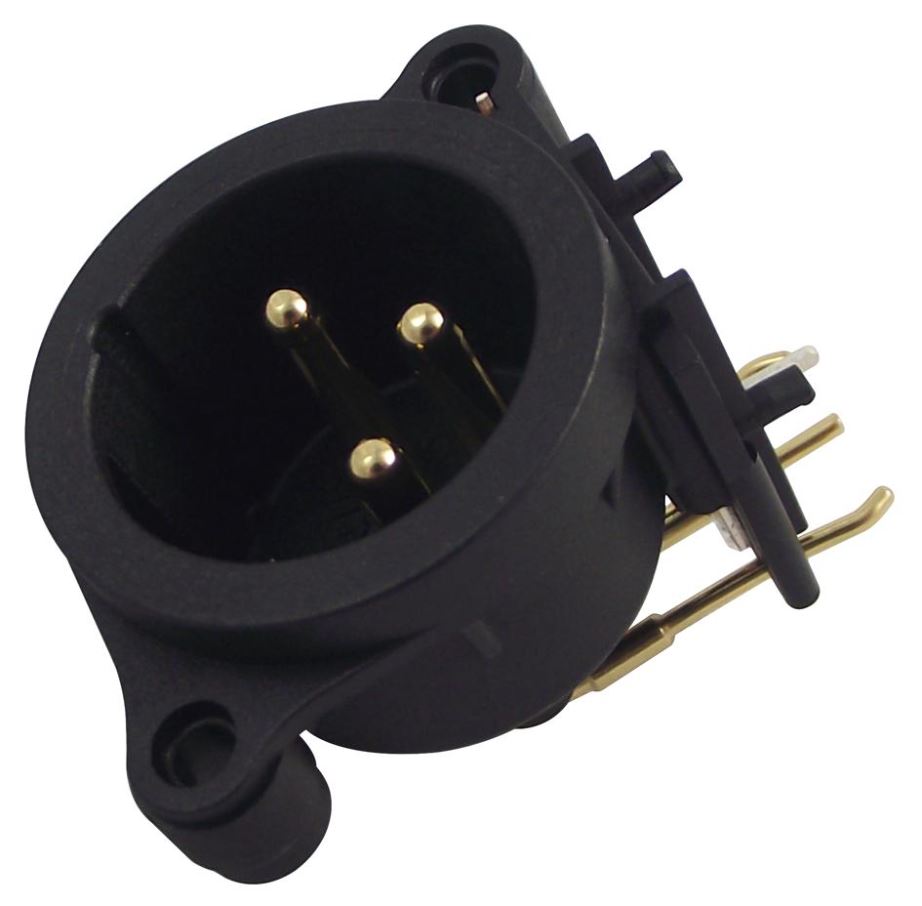

The NEUTRIK NC3MAAH is a high-quality 3-pole male XLR receptacle designed for PCB mounting, featuring brass contacts and a latch locking device. This AA series connector ensures optimal signal quality with selective gold-plated contacts and a separate ground contact for enhanced shielding.
The polyamide insert and black plastic flange offer durability, while the PCB termination area maximises conductivity and solderability. This model is both cost-effective and built to industry standards, making it an excellent choice for professional audio applications.
Key Features
- Tulip-type contact design for high pressure and long-term durability
- UL94HB flammability rating ensures safety
- IP65 protection rating for dust and water resistance
- Complies with IEC 61076-2-103 (connector standard)
- Low contact resistance (≤6mΩ) for efficient signal transmission
- High insulation resistance (>10GΩ) for stable performance
- Supports 6A current rating per contact with a voltage rating of <50V
- Temperature range of -30°C to +80°C for versatile use
Ideal for bulk installation in rack and fixed audio equipment due to its compact, horizontal PCB-mount design.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Professional audio equipment
- Rack-mounted gear
- PCB-based audio interfaces
- Studio and live sound systems
- Contacts: 3-pole
- Gender: Male (Plug)
- Mounting: PCB
- Contact Plating: Selective gold-plated
- Body Material: Plastic (polyamide insert, black flange)
- Contact Resistance: ≤6mΩ
- Insulation Resistance: >10GΩ
- Current Rating: 6A per contact
- Voltage Rating: <50V
- Temperature Range: -30°C to +80°C
- Flammability Rating: UL94HB
- Protection Rating: IP65
- Compliance: IEC 61076-2-103, IEC 68-2-20 (solderability)
- Weight: 100g
