NEXPERIA NPN Bipolar Transistor, 100V, 1A, 300mW, SOT-23 SMD

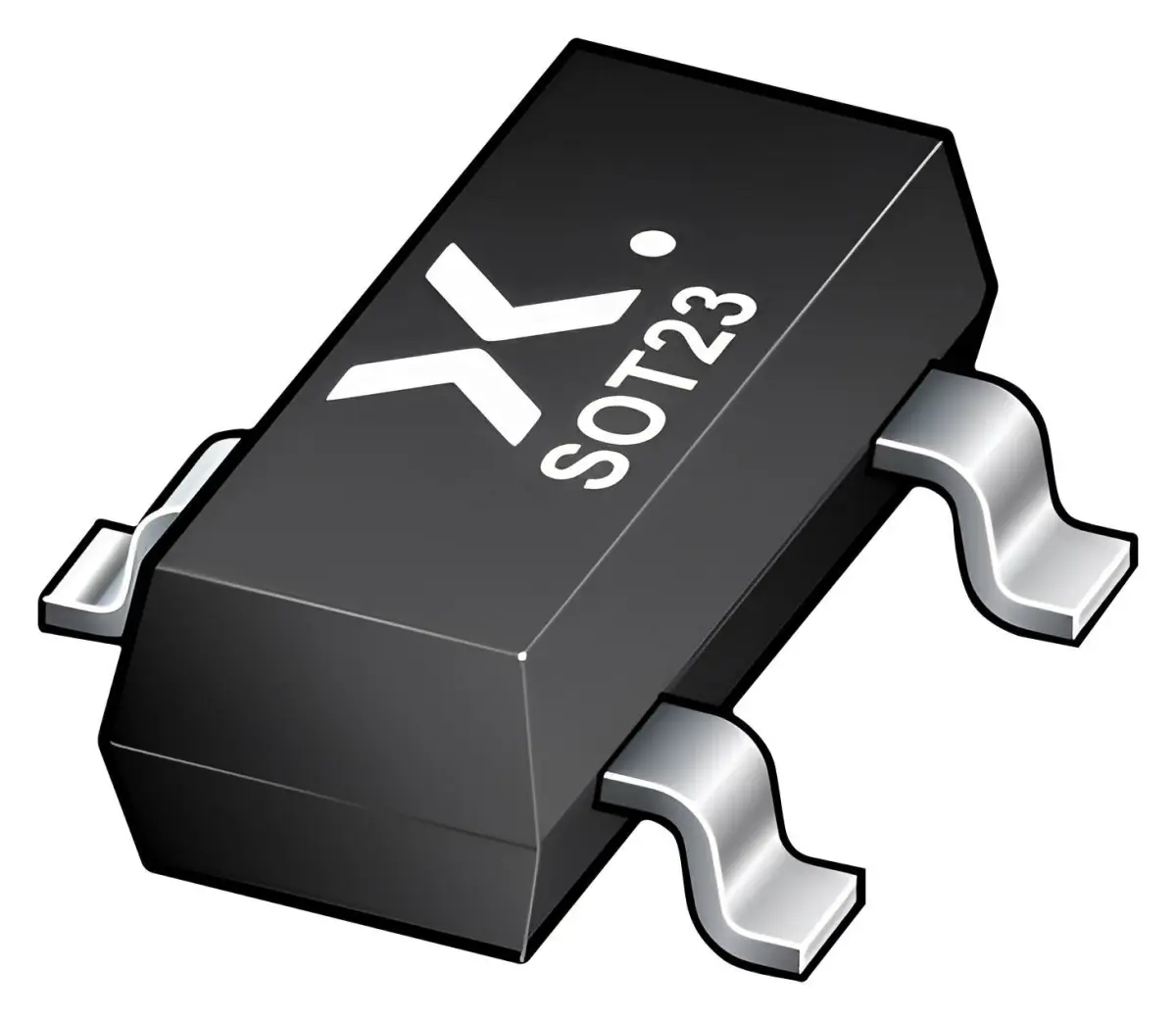

The NEXPERIA NPN Bipolar Transistor is a low VCEsat device presented in a compact SOT-23 (TO-236AB) surface-mounted device (SMD) plastic package. This transistor is engineered to deliver reliable performance across a wide range of demanding applications, offering a low collector-emitter saturation voltage and high collector current capability.

Designed for efficiency and space-saving integration, the SMD package ensures straightforward mounting onto printed circuit boards. It features a robust set of electrical characteristics, including a collector-emitter breakdown voltage of 100V and a continuous collector current of 1A, making it suitable for various power management and driver circuits.

Key Applications

This versatile transistor is ideally suited for major application segments, including automotive 42V power systems, telecom infrastructure, and industrial environments. It excels in power management tasks such as DC/DC converters, supply line switching, battery chargers, and LCD backlighting. Furthermore, it serves effectively as a peripheral driver for low supply voltage applications like lamps and LEDs, as well as an inductive load driver for relays, buzzers, and motors.

Electrical Specifications

• Transistor Polarity: NPN
• Collector-Emitter Voltage (Max): 100V
• Continuous Collector Current: 1A
• Total Power Dissipation: 300mW
• DC Current Gain (hFE Min): 150
• Transition Frequency: 100MHz
• Collector-Emitter Saturation Resistance: 200mΩ (typ)
• Operating Temperature Range: -65°C to 150°C

With its combination of high current capability and low saturation voltage, this NEXPERIA transistor provides a dependable solution for modern electronic designs.
