OMRON G2R Relay PCB Socket 5-Pin

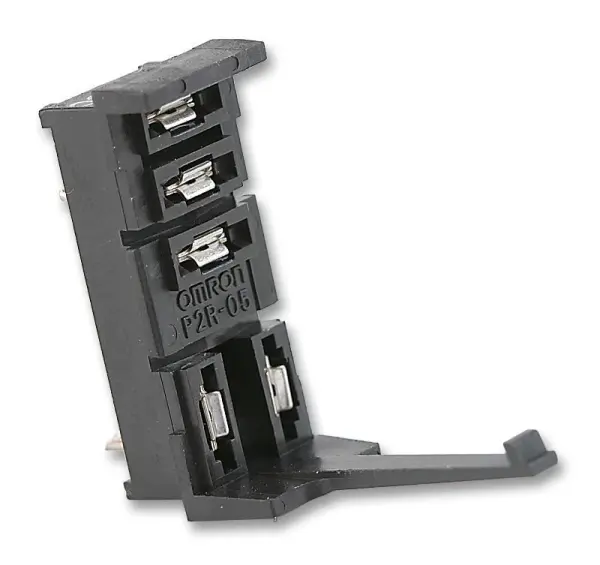

The OMRON G2R Relay PCB Socket is a 5-pin, back-connecting PCB mount socket for secure mounting of compatible Omron G2R-1 series relays.

Overview

Designed for back mounting, this socket provides a neat installation that helps maximise space efficiency within control panels and electronic enclosures. It is particularly suited to applications demanding high isolation and high sensitivity. Its through-hole mounting and 5 PCB pins give a solderable connection directly to the board layout, supporting reliable electrical contact and mechanical strength.

Key Features

• Back-connecting PCB mount socket
• Compatible with Omron G2R-1-S series relays (1-pole)
• Through-hole mounting
• 5 PCB pins for a solderable connection
• 10A current rating for switching and control circuits
• Suited to high isolation and high sensitivity applications

Dimensions and Weight

Overall dimensions (H x W x D): 43 mm x 33 mm x 15 mm. Weight: 4 grams.

Applications

The socket is intended for sensing instrumentation and industrial automation systems, where precise and reliable relay operation is required. Its design supports integration into existing and new electronic designs for engineers and technicians working in industrial and instrumentation settings.

Choose the OMRON G2R Relay PCB Socket for a 5-pin, 10A PCB relay socket that supports back mounting and through-hole installation.
