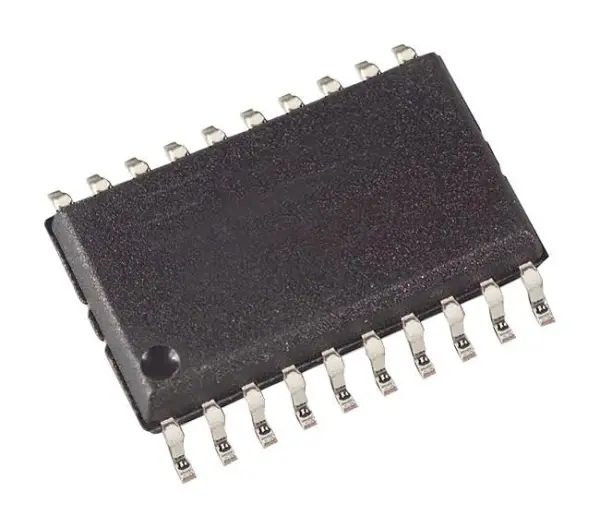

Onsemi 3-State Inverting Octal Buffer SOIC 20 2V to 6V

The Onsemi 3-State Inverting Octal Buffer is a SOIC 20 integrated circuit that provides eight inverting buffer outputs with 3-state control, operating across a 2V to 6V supply range.

Overview

This inverting octal 3-state buffer is built using advanced silicon-gate CMOS technology. It delivers high drive current outputs, enabling high-speed operation even when driving large bus capacitances. The device achieves speeds comparable to low-power Schottky devices while retaining the high noise immunity and low power consumption associated with CMOS circuitry.

The buffer offers a fan-out of 15 LS-TTL equivalent inputs, allowing it to drive multiple loads effectively. Its 3-state control gate operates as a two-input NOR, so that if either G1 or G2 is HIGH, all eight outputs enter the high-impedance state, allowing connection to system buses. The pin-out is optimised for enhanced PC board layout, with inputs and outputs arranged for convenience.

Key Features

• Inverting octal 3-state buffer
• Advanced silicon-gate CMOS technology
• High drive current outputs for high-speed operation
• Low quiescent current: 80µA maximum
• Typical propagation delay: 12ns
• 3-state outputs for connection to system buses
• All inputs protected against static discharge by diodes to VCC and ground

Applications

Suitable for industrial control systems, signal processing circuits, and communications networking equipment, this device is a versatile choice for digital logic designs.

Specifications

• Supply voltage: 2V to 6V
• Operating temperature: -40°C to 85°C
• Package: SOIC, 20 pins
• Logic family: 74HC

Choose the Onsemi 3-State Inverting Octal Buffer for digital logic designs that require an inverting buffer with 3-state outputs in a SOIC 20 package.
