ONSEMI NPN Bipolar Transistor 40V 600mA 1.5W SOT-223 SMD

The ONSEMI NPN Bipolar Transistor is a high-performance silicon planar epitaxial device designed for linear, switching, and medium power surface mount applications. Engineered for durability and reliability, the specially formed leads effectively absorb thermal stress during the soldering process, eliminating the risk of damage to the delicate die and ensuring a robust, long-lasting connection.

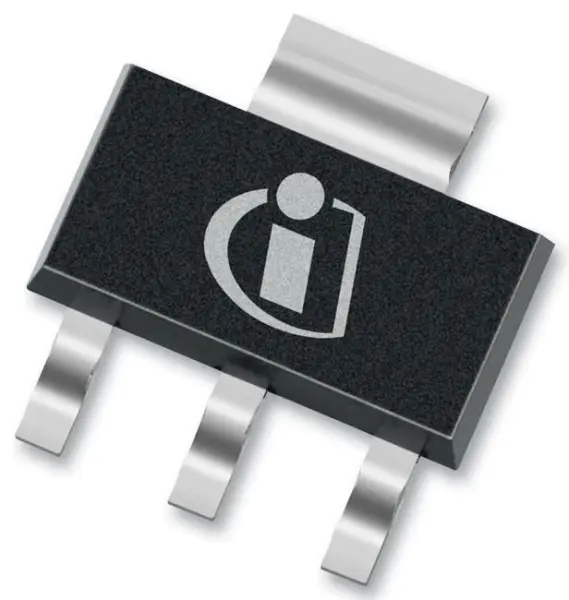

This transistor features a SOT-223 package, which guarantees level mounting on the printed circuit board. This specific design characteristic results in significantly improved thermal conduction away from the die, while also allowing for easy visual inspection of the soldered joints to ensure quality assembly. Furthermore, the component is AEC-Q101 qualified and PPAP capable, making it highly suitable for demanding automotive and industrial environments where failure is not an option. It is also completely halogen-free, aligning with modern environmental and safety standards.

Key Specifications

• Transistor Polarity: NPN
• Collector Emitter Voltage Max: 40V
• DC Collector Current: 600mA
• Continuous Collector Current: 600mA
• Power Dissipation: 1.5W
• Transition Frequency: 300MHz
• DC Current Gain hFE Min: 300hFE
• Operating Temperature Max: 150°C
• Transistor Case Style: SOT-223
• Mounting Type: Surface Mount
• Number of Pins: 4
