Peak Network Cable Analyser & Fault Identifier

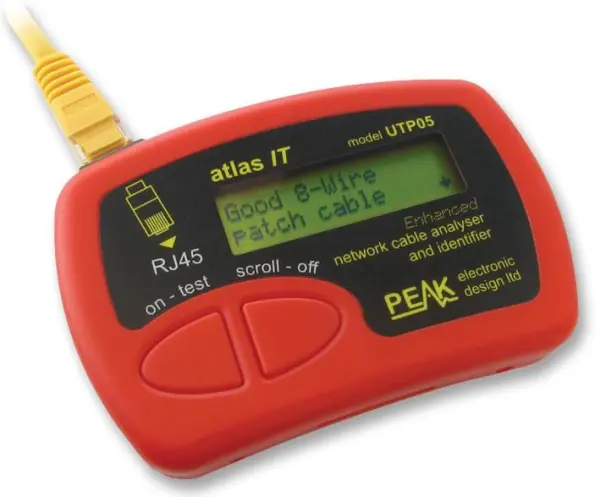

The Peak Network Cable Analyser is a diagnostic tool for RJ45 network cables that automatically identifies cable configurations and pinpoints faults over a range of up to 150 metres (500 feet).

Overview

Designed for network technicians and IT professionals, the Peak Network Cable Analyser goes beyond basic cable testing. It can identify the wiring configuration of a cable even when faults are present, and it displays the differences between the faulty cable's actual wiring and the expected, correct configuration. This helps reduce diagnostic time and guesswork when troubleshooting RJ45-based network cables, sockets, and patch panels.

Key Features

• Automatic Cable Configuration Identification: Determines the wiring scheme of any connected cable.
• Comprehensive Fault Identification: Identifies missing or broken wires, shorted wires, and swapped wire pairs.
• Clear Visual Display: A user-friendly, scrollable display shows standard wiring colours for easy reference and verification.
• Live System Protection: Built-in protection safeguards the device and user against accidental contact with voltages present on live voice and data systems.
• Extended Range: Supports cable testing up to 150 metres (500 feet).
• Accessories: Supplied with two miniature terminators for testing in tight spaces and confined cabinets. Compatible with optional identified terminators for managing and testing multiple cable runs.
• Automatic Power Management: Auto power-on and power-off functions help conserve battery life.

Applications

The analyser suits network installation, maintenance, and troubleshooting work where cable integrity must be verified quickly. Its miniature terminators make it practical for confined cabinets, while the optional identified terminators support testing across multiple cable runs.

Choose the Peak Network Cable Analyser & Fault Identifier for straightforward, detailed diagnostics of RJ45 network cabling.
