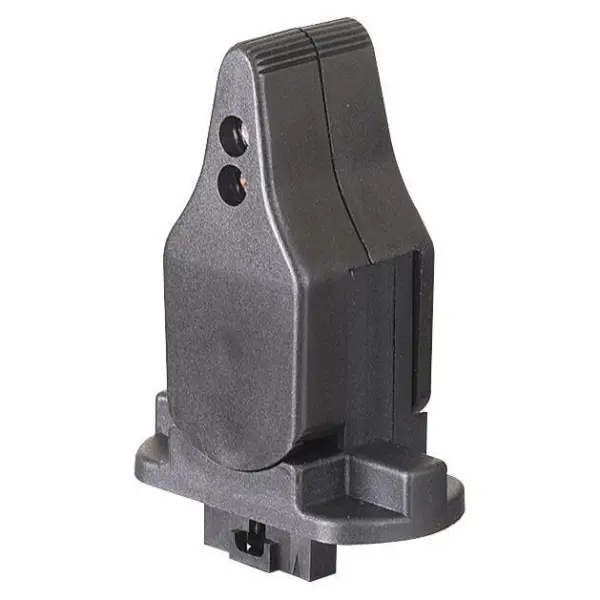

Penny & Giles JC120 Single Axis Joystick Controller

The Penny & Giles JC120 Single Axis Joystick Controller is a precision-engineered fingertip control designed for reliable performance in demanding environments. With a low-profile ergonomic design, it stands just 54mm or 64mm high, reducing the risk of unintentional operation during use. All components are housed within the paddle, making it ideal for mounting in low-profile panels and armrests where space is at a premium.

This single-axis joystick features a standard 7-pin Molex automotive connector, simplifying installation and reducing setup time. Designed for maintenance-free operation, it has an operating life exceeding five million cycles, ensuring long-term durability. The unit is sealed to IP67 when fitted with the optional neoprene boot, providing robust protection against dust, dirt, and aggressive particles in harsh industrial settings.

Technical performance includes a 10kΩ minimum load resistance, a maximum load current of 2mA (resistive), and a typical contact resistance of 150Ω. The lever travel is ±30°, with a rotation electrical angle of 28°, and it connects via a standard connector terminal. Whether used in agriculture or automation process control, this joystick delivers precise, dependable input in a compact form factor.
