Pimoroni GPIO Hammer Header Kit for Raspberry Pi Zero

The Pimoroni GPIO Hammer Header Kit is a solder-free solution for attaching headers to a Raspberry Pi Zero or compatible pHAT boards using a hammer-fit method.

Overview

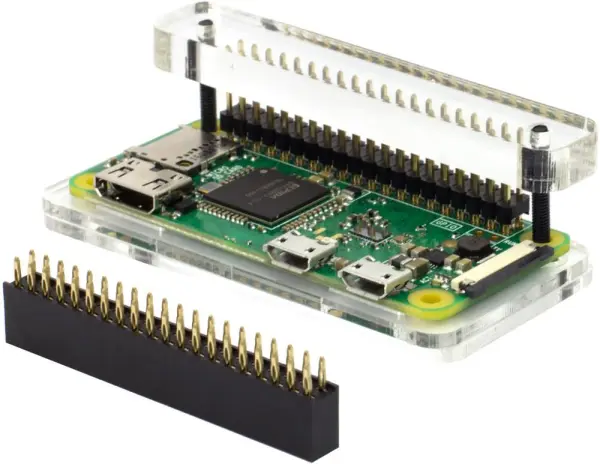

This kit removes the need for a soldering iron, making electronics projects more accessible and speeding up the assembly process. To fit the headers, place the supplied installation jig over the board, insert the header pins, and gently tap them into place with a hammer for a secure connection.

Key Features

• Hammer-fit installation with no soldering required
• Header grips securely into the PCB holes for a strong electrical and mechanical connection
• Installation jig aligns the header with the Raspberry Pi Zero GPIO pins to help prevent misalignment
• Male and female headers supplied for versatile connections
• Compatible with Raspberry Pi Zero and pHAT boards

Applications

The male and female headers can be used to connect GPIO cables, add-on boards, or create custom interfaces. The kit is ideal for prototyping and workshop use, and suits beginners, educators, and professionals.

Specifications

• Dimensions: 36.5 mm (H) x 26 mm (W) x 13.5 mm (D)
• Weight: 30 grams

Because the method involves no thermal stress, it avoids heat exposure to the sensitive components on your Pi. The robust header construction provides a durable connection that can withstand repeated insertion and removal of cables, supporting reliable use in your projects.
