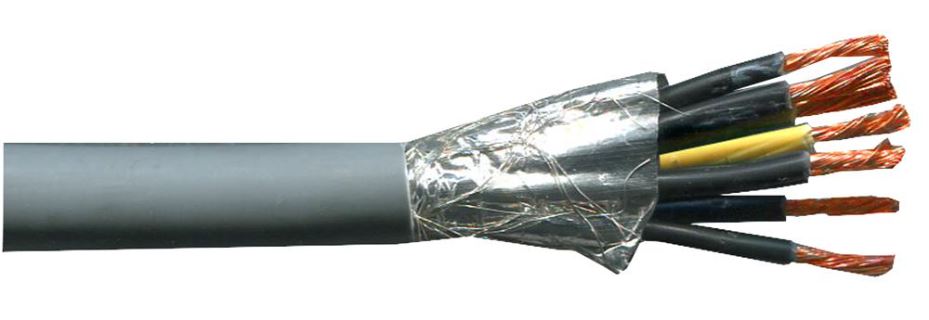

PRO ELEC 7 Core CY Control Cable, LSZH, 0.75mm², 50m
Versatile 7-core CY control cable (LSZH, 0.75mm², 50m) for safe, flexible signal transmission in dry/moist conditions.
The PRO ELEC 7 Core CY Control Cable offers versatile and dependable connectivity for a range of control and instrumentation applications. Designed with grey LSZH (Low Smoke Zero Halogen) jacketing, this cable ensures safety in environments where fire resistance and minimal toxic emissions are critical. Its 7-core, plain copper conductor construction provides flexibility and efficient signal transmission, making it ideal for tooling machinery, production lines, and other control equipment where free movement without tensile load is required.
This cable performs reliably in dry, moist, and wet rooms, with 300/500V voltage rating and temperature tolerance from -30°C to +80°C (fixed) and -5°C to +70°C (flexed). The minimum bend radius is 8x OD when fixed and 15x OD when flexed, ensuring durability in dynamic installations. However, it is not suitable for outdoor or underground use.
Key Specifications
- Screened shielding enhances signal integrity by reducing electromagnetic interference.
- 7 × 0.75mm² stranded copper conductors improve flexibility and conductivity.
- External diameter of 7.6mm ensures a compact yet robust design.
- 164.04ft / 50m reel length, available in grey for easy identification.
- LSZH jacket provides fire-resistant properties with low smoke emission.
The PRO ELEC 7 Core CY Control Cable meets the high standards of modern industrial applications, delivering consistent performance in challenging conditions.
- Instrumentation/control equipment
- Tooling machinery
- Production lines
- Flexible applications requiring free movement
- Voltage Rating: 300/500V
- Temperature Rating (Fixed): -30°C to +80°C
- Temperature Rating (Flexed): -5°C to +70°C
- Minimum Bend Radius (Fixed): 8x OD
- Minimum Bend Radius (Flexed): 15x OD
- Cable Shielding: Screened
- No. of Cores: 7
- Conductor Area CSA: 0.75mm²
- Reel Length (Metric): 50m
- Reel Length (Imperial): 164.04ft
- Jacket Colour: Grey
- Strand Configuration: 7 x 0.75mm²
- Conductor Material: Copper
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- External Diameter: 7.6mm
- Product Range: CY Control Cable
- Weight: 6450g
