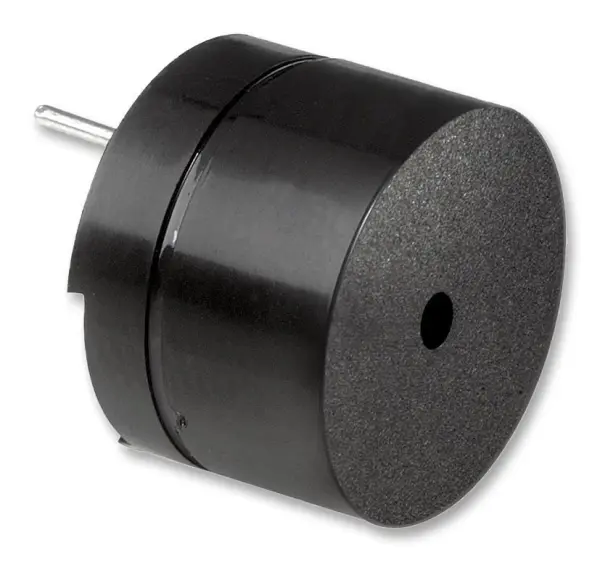

Pro Signal UK Transducer

The Pro Signal UK Transducer is a versatile electro-mechanical buzzer designed for integration into a wide range of electronic circuits. It features a straightforward through-hole mounting design, making it simple to install directly onto a printed circuit board (PCB).

Engineered for low power consumption, this transducer is an efficient choice for battery-powered devices, requiring just 1V to 3V of supply voltage. It produces a clear audio signal with a resonant frequency of 2.04kHz and a sound pressure level of 80dB, ensuring it is audible in various environments.

Applications

This component is suitable for generating audible alerts and notifications. It is commonly used in timers, household appliances, security systems, and electronic toys where a simple, reliable audible indicator is required. Its compact size makes it ideal for applications where space is at a premium.

Constructed from robust materials, it operates reliably across a broad temperature range from -20°C to 70°C, ensuring consistent performance in different climatic conditions. The component is designed for long-term reliability and stable output.

Specifications

• Function: Buzzer
• Mounting Type: Through Hole
• Supply Voltage: 1V to 3V DC
• Resonant Frequency: 2.04 kHz
• Sound Pressure Level: 80 dB
• Current Rating: 15 mA
• Operating Temperature Range: -20°C to +70°C
• Dimensions: 43mm (H) x 33mm (W) x 15mm (D)
• Weight: 2 grams

With its simple design and dependable performance, the Pro Signal UK Transducer provides an effective solution for adding an audible signal to your electronic projects.
