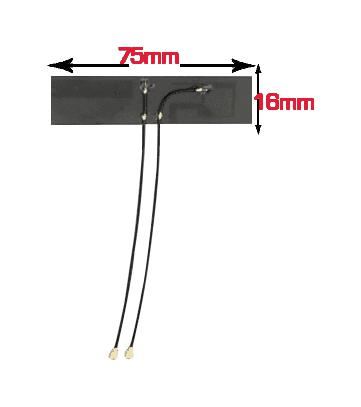

RF Solutions 4G GSM/GPS Combo Adhesive Flexible Antenna

The RF Solutions 4G GSM/GPS Combo Adhesive Flexible Antenna is a high-performance PCB antenna designed for applications requiring combined GSM cellular and GPS functionality in a compact, space-saving format. Its flexible design and self-adhesive backing make it ideal for embedded systems where performance and size are critical.

This mini patch antenna offers a broad frequency range of 700/960 - 1800/2700MHz for GSM and 1575.42MHz for GPS, ensuring reliable connectivity across various applications. The 3M adhesive sticker on the rear allows for easy and secure mounting, while its 0.3mm flexi PCB thickness ensures compatibility with even the most space-constrained installations.

Specifications

• Frequency Range: 700/960 - 1800/2700MHz (GSM), 1575.42MHz (GPS)
• Antenna Type: Patch
• Gain: 4dBi
• VSWR: 1.5
• Input Power: 10W
• Input Impedance: 50ohm
• Polarisation: Linear
• Operating Temperature: -10°C to 70°C
• Mounting Method: Adhesive (3M sticker)
• Flexi PCB Thickness: 0.3mm
• Cable Length: 15cm (1.13 Mini Coax to UFL connector)

This antenna is perfect for embedded GSM/GPS applications, IoT devices, tracking systems, and any scenario where reliable wireless communication in a compact form factor is essential.
