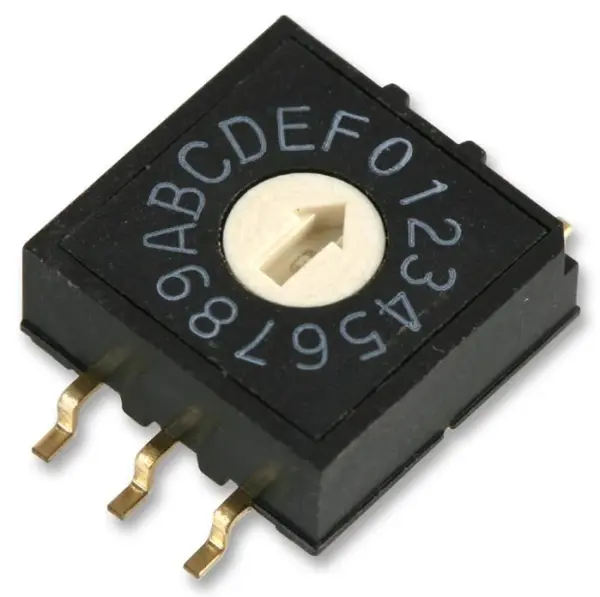

Rotary DIP Switch SMD 16 Position 3 Pole MCRM

This Rotary DIP Switch from Multicomp Pro is a compact and reliable switching solution designed for surface mount applications. Featuring a white LCP thermoplastic recessed actuator, this switch offers precise control with a 16-position design and 3 poles, providing a total of 48 switching combinations. The switch delivers a crisp 22.5° angle of throw, ensuring accurate and tactile feedback during operation.

Engineered for durability and performance, the switch utilises a copper alloy with gold-plated contacts, ensuring excellent electrical conductivity and corrosion resistance. It is capable of handling a maximum DC current of 25mA and a maximum DC voltage of 50V, making it suitable for low-power control circuits. The switch is also rated for 250V AC voltage (current not specified), catering to a wide range of signal and control applications.

The non-illuminated design is ideal for applications where visual status indication is not required. As part of the MCRM series, this switch adheres to rigorous quality standards and is designed for reliable long-term performance. Its compact footprint, with dimensions of 43mm height, 33mm width, and 15mm depth, makes it suitable for space-constrained PCB designs.

Key Features

• 16-position rotary operation
• 3-pole design for multiple circuit switching
• 22.5° angle of throw for precise indexing
• Copper alloy with gold-plated contacts for reliable performance
• White LCP thermoplastic actuator for durability
• Surface mount (SMD) package for automated assembly

This switch is an excellent choice for engineers and hobbyists seeking a robust and precise rotary switching solution for their electronic projects.
